ARES PRO V2.1 MODIFIED Brushless Motor 1/10 Sensor 4.5T View larger

ARES PRO V2.1 MODIFIED Brushless Motor 1/10 Sensor 4.5T

SKY400003-62

SkyRC

SkyRC 540 Ares Pro V2.1 brushless sensored motor for 1/10. 4.5T Edition

More details

In stock This product is in stock

75,99 €


More info

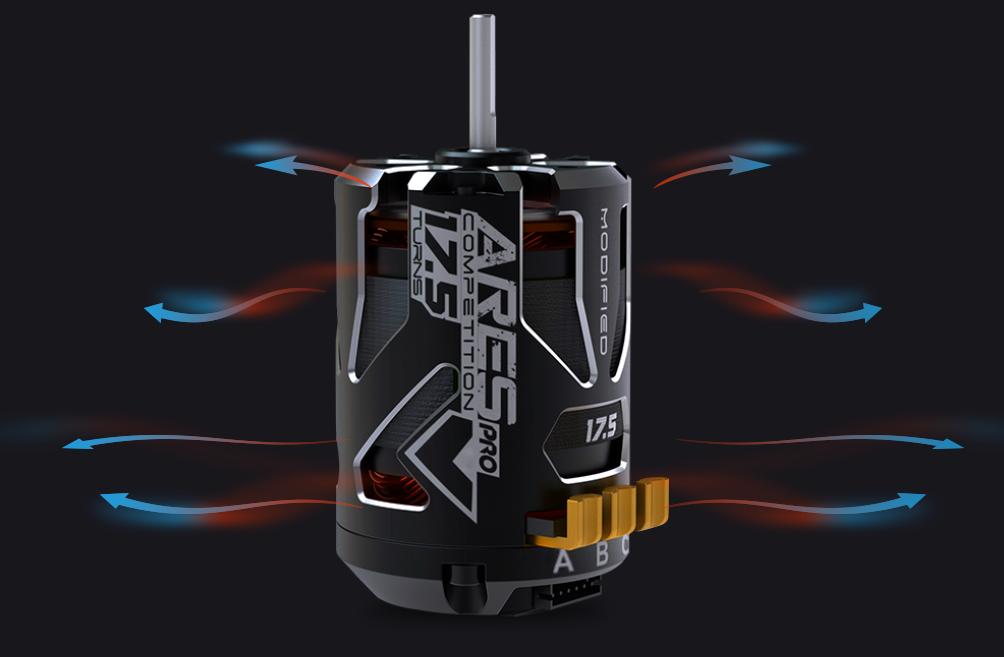

Effective ventilation
Extreme performance
In more dazzling shape featuring multiple cooling engraved fins for added heat-dissipating surface area, the motor is implementing thermal silicone insulator between the endbell and stator to conduct the internal heat to the case with the temperate reduced efficiently, and power output multiplied!

The V2.1 Edition is EFRA approved.

Key features
  • Aluminum Shell with CNC Forming Process
  • Pure Copper Coil with High Conductivity
  • High Power Welding Pieces
  • Replaceable Rotor
  • Powerful Sintered Neodymium Magnet
  • Seiko in Manufacturing with Maximum Energy Conversion
  • Dual Sensor Port
  • Adjustable Timing (Up to 60°)
  • Compatible with Any Sensored/Sensorless ESC
  • IFMAR, ROAR Compliance
  • EFRA approved

Specifications
  • Turns : 4.5
  • Power (Watt) : 490
  • Rotor (mm) : Diam 12.5 x diam 5
  • Rotor (Pole) : 2P
  • Kv (RPM/V): 7620
  • LiPo : 1-2S
  • Max current (A) : 108
  • Unload current (A) : 6.9
  • Internal resistance (Ohm) : 0.0042
  • Net Weight (g) : 178
  • Racing type : Modified
Data sheet
  • Manufacturer : SkyRC
