View larger

Diff analyzer

Model: SKY500026-03

Manufacturer: SkyRC

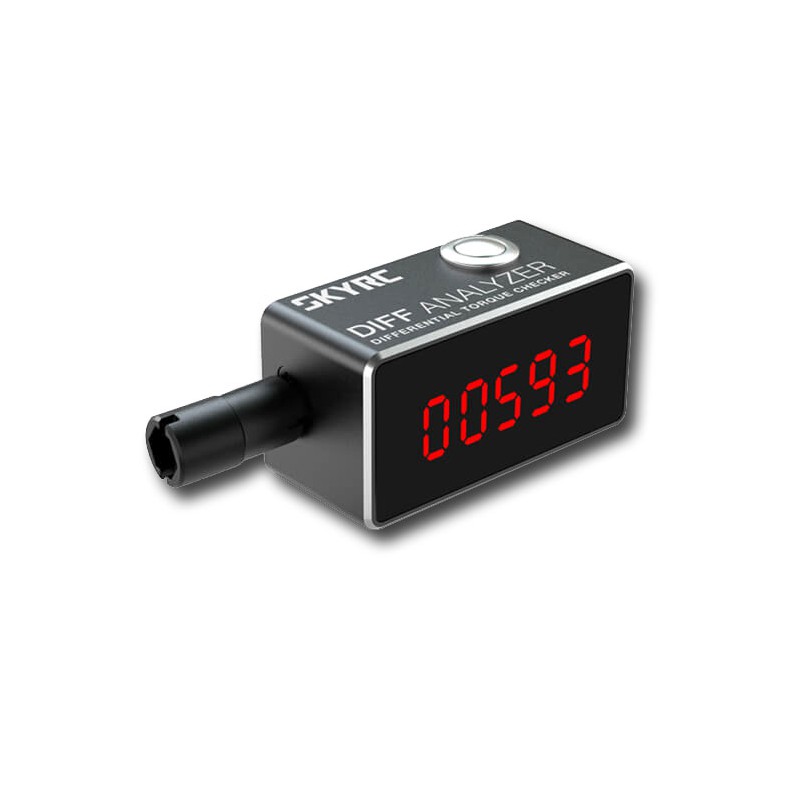

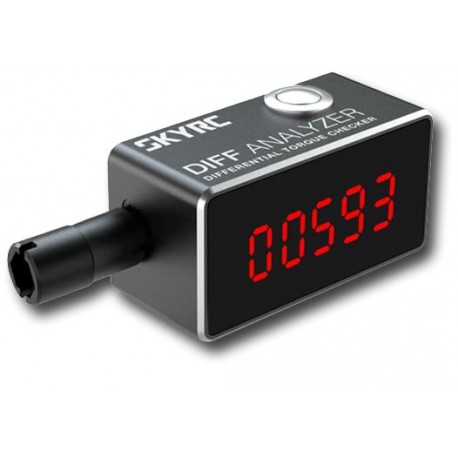

SkyRC Differential analyzer

More details

Availability: This product is in stock

93,99 €

(Recommended retail price tax incl.)

Find a Beez2b dealer near you.

More info

Data is vital

SkyRC has presented a Diff Analyzer for setting up and fine-tuning the hardness of differentials for 1/10th scale cars and Mini-Z. Diff Analyzer provides numeric data to which helps to assess or replicate a specific hardness. Changing the diff oil will not be by feeling or guessing anymore. The handy device helps measure the diff setting, ensuring consistent hardness after building and setup.

Tiny but Versatile

The Diff Analyzer have a precision unibody enclosure crafted from a single block of aluminum with anodized finish, resulting in thinner, more durable and incredibly beautiful designs. It comes out of the box with an adapter that allows you to measure 1/10th scale and Mini-Z. An adapter for 1/8th scale can be purchased optionally. Inside it is the key components that allow the spin and calculation of every kind of hardness of diff and viscosity of diff oil.

The analyzer is powered by any universal Micro USB output or a power bank.

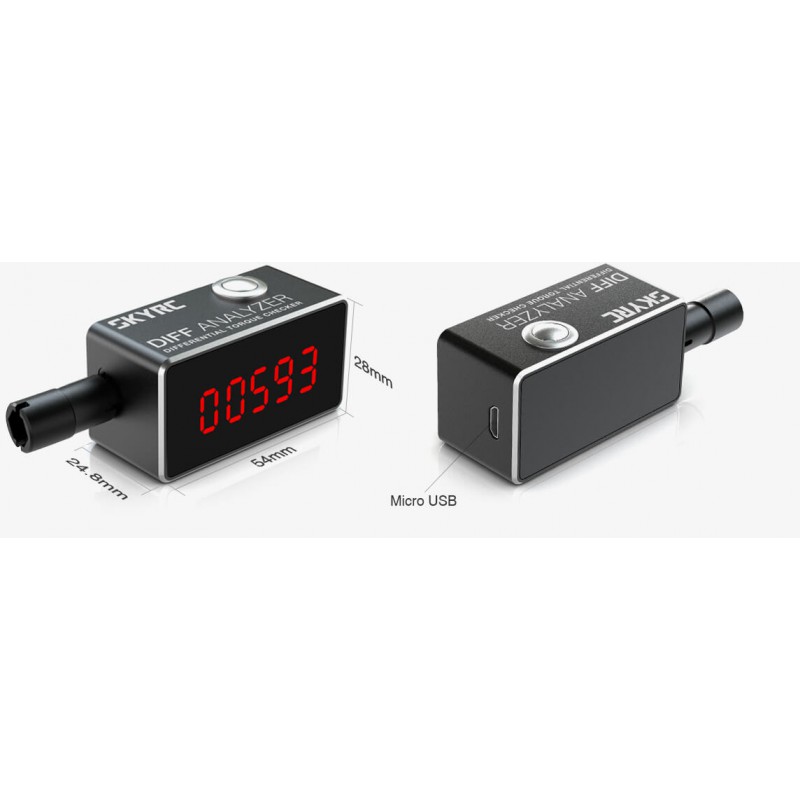

The device comes in a pocketable dimension of 54x28x24.8 mm weighing 59 g only.

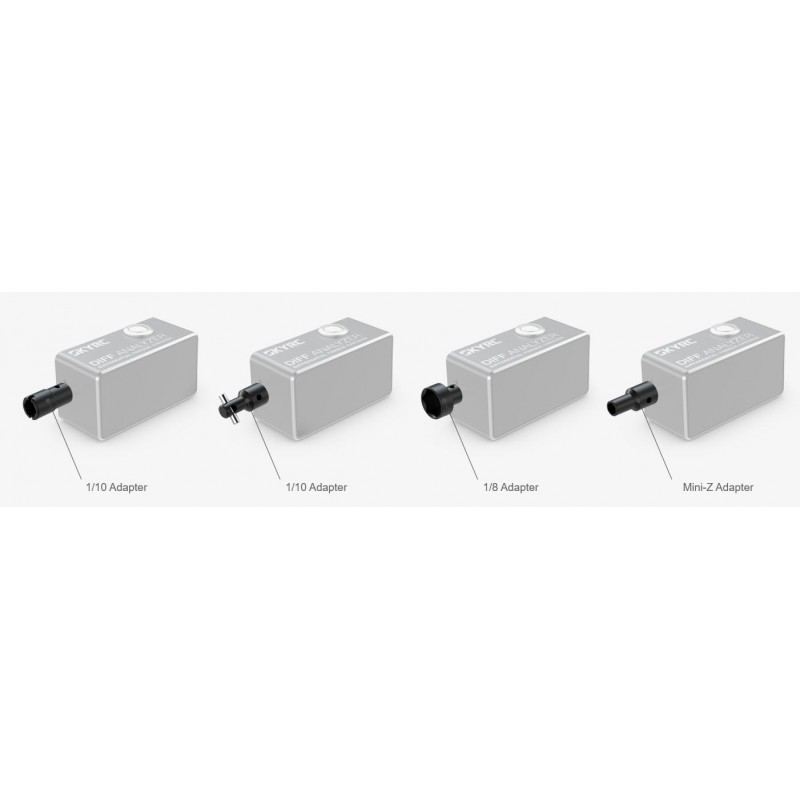

Adapters

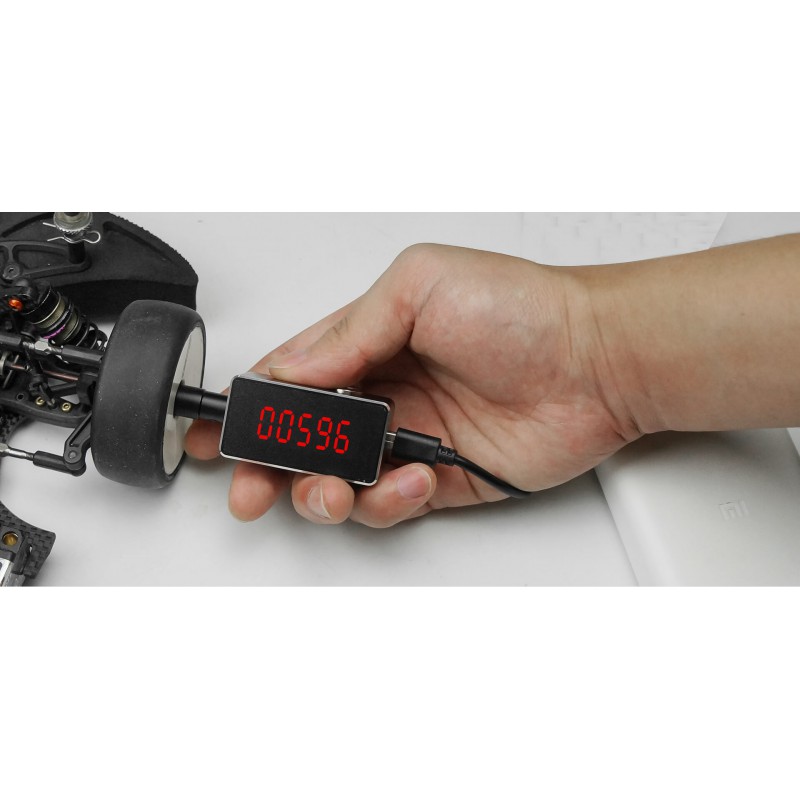

The Diff Analyzer is delivered with an adapter for the diff measurement not assembled on the model. There is also an adapter which allows measuring directly on the model for all scales.

How to use diff analyzer ?

1. connect diff analyzer to a power bank or any regular Micro 5V USB port

2. Connect the differentiel with the diff analizer and press the power button. Diff. analyzer will show a numeric value for diff being tested. Test duration last around 3-5 seconds. Repeat the same procedure for other diffs to have numeric values to compare.

Specifications
