Ezrun 1626SD Motor 3500kV

HW30402653

Hobbywing

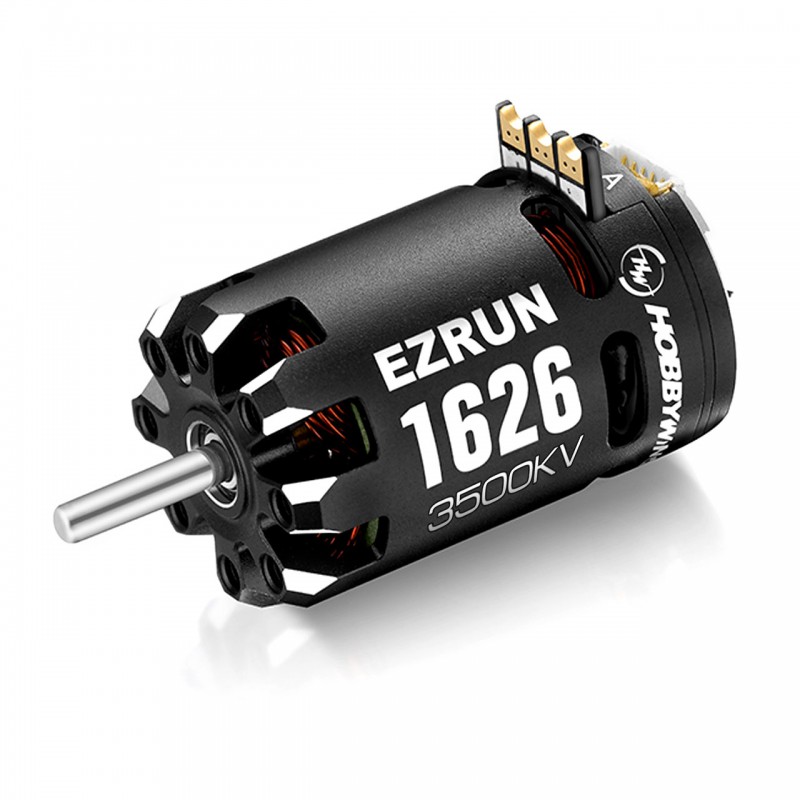

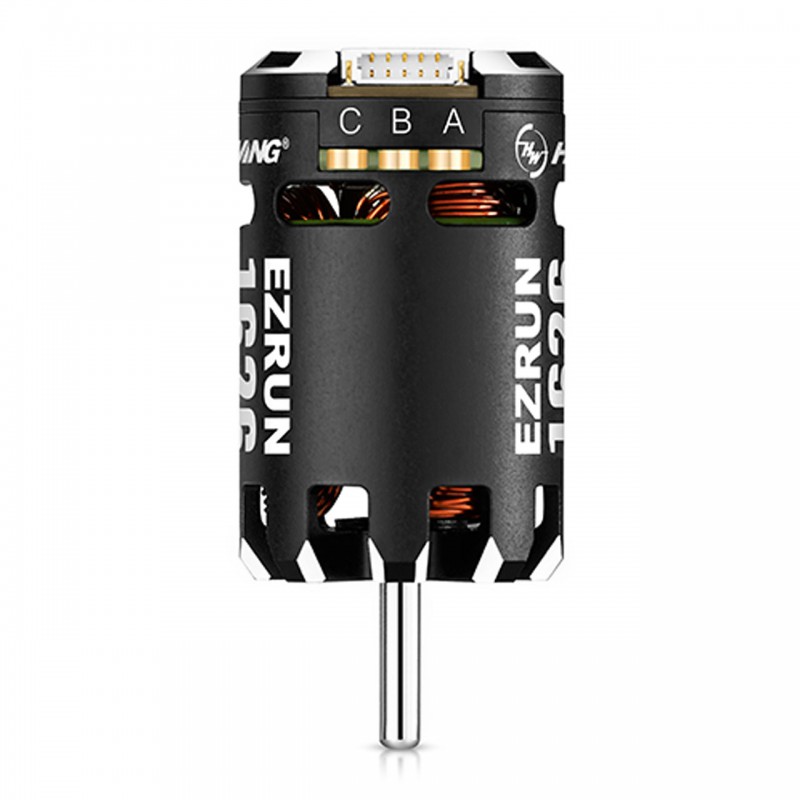

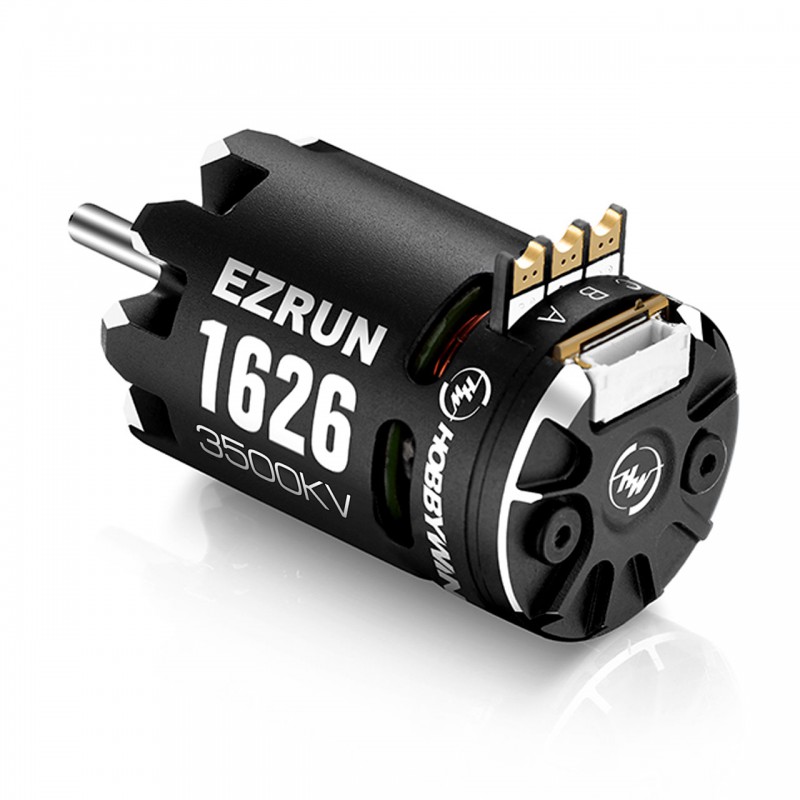

Hobbywing Ezrun 1626SD Brushless Motor 3500kV

More details

On order & available within +/- 9 days On order & available within +/- 9 days

58,99 €


More info

About the 1626 motors

More Power!
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
Small or large changes can be made for major on-demand power needs.

Precision Response
Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability.
The use of high-precision sensors ensures the ESC will be able to provide the best feel for the drivers.

Higher Efficiency means cooler operation
The 1626 motor is extremely efficient and has increased power compared to similar size motors.

Designed to ensure higher power capabilities
High-density 4-layer PCB provide easy-to-solder connections.

Modular detachable structure, convenient for daily cleaning and maintenance.

Specifications



Product Name   EZRUN 1626SD 3500KV
Product Number   30402653
Type Scale 1/28th
Brushed/Brushless BL
Sensored/Sensorless SD
Pole Count 2
Relevant Parameters KV Rating 3500KV
LiPo Cells 2S
No-load Current(A) 0.4A
Size & Weight O.D.(mm) 16
Length (mm) 26
Shaft Diameter (mm) 2
Weight (g) 18g
Bearing D5*D2*T2.5
Other Parameters Applications 1/28th Mini

Data sheet
  • Manufacturer : Hobbywing
