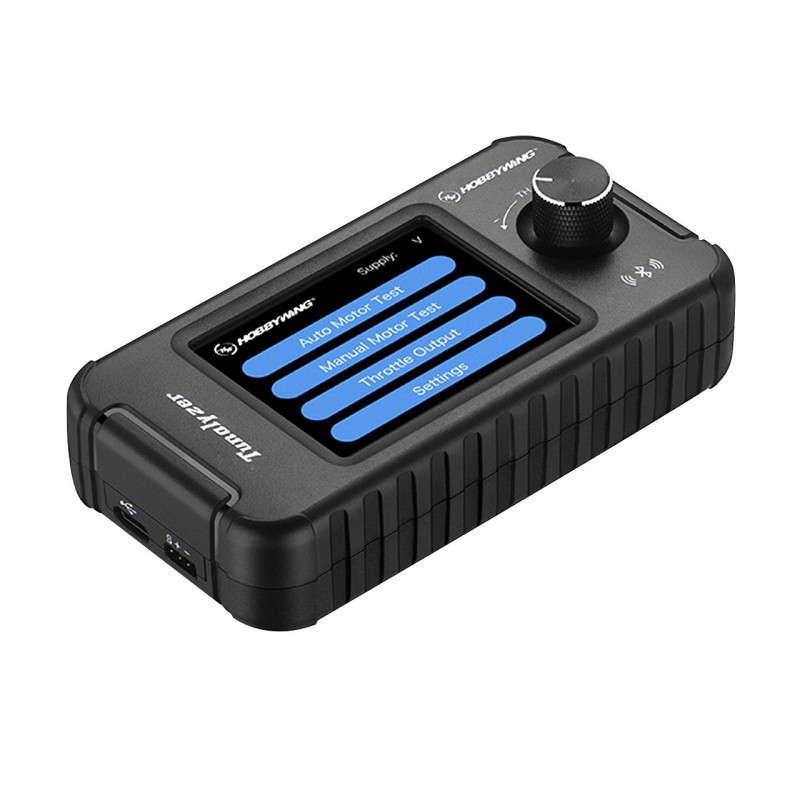

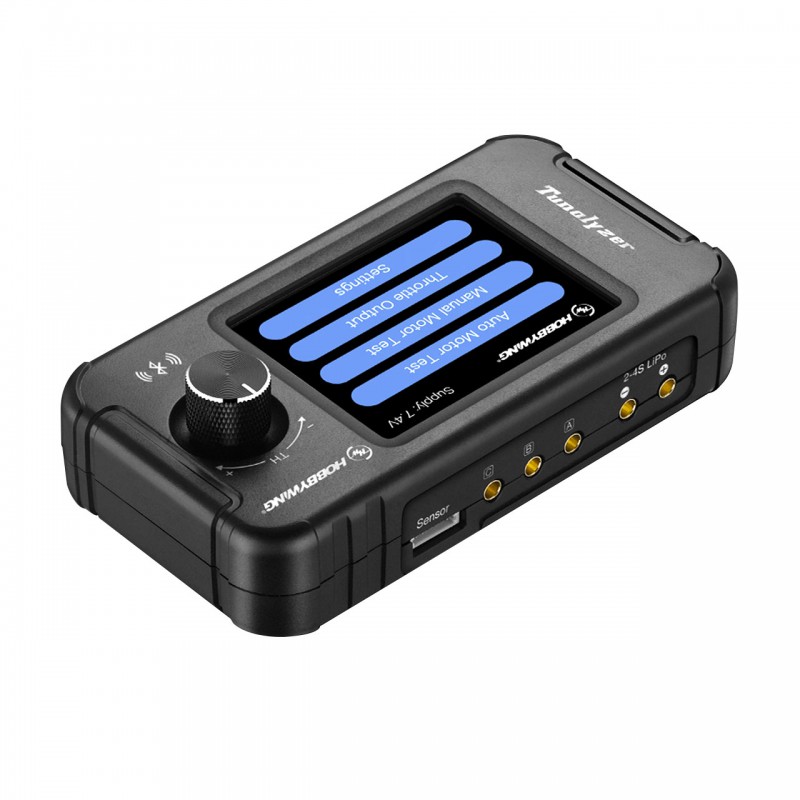

Tunalyzer Motortester

Tunalyzer

The next-generation tool for motor testing and tuning

Accurate testing results

• Consistent and reliable
• 8 different auto-test parameters
• 4 different manual test parameters

Automatic Test Mode
The Tunalyzer allows you to run auto-testing modes to provide quick and easy tests.
Accurate current readings - within 0,01A
Accuracy of end-bell deviation, rotor assymetry and hall signal deviation is within 0,1 degrees.

Accuracy is achieved by gathering more information and providing more data for the Tunalyzer to review.

Stable Voltage Regulator
The Tunalyzer has an internal voltage regulator to allow repeated tests at the same voltage as the battery pack discharges. This allows testing to be done on several motors for direct comparisons.
Tunalyzer has "Preset" voltages for this feature that must be used and the battery must be greater than the set voltage.

Manual Test Mode
The Tunalyzer can be used as a manual tester for simple benchtop checks. Forward and reverse with 100% linear throttle. The live output of the data is displayed as well.

Multi-FunctionControl Dial
The dial on the face of the Tunalyzer is used for throttle control as well as external testing.
PWM output is offered for use to test Servos and ESCs on the bench.

RPM Displayed in Real Time
The Tunalyzer provides a motor pole setting from 2-60 pole motors.
This allows for an accurate and precise display of motor RPM in real-time.

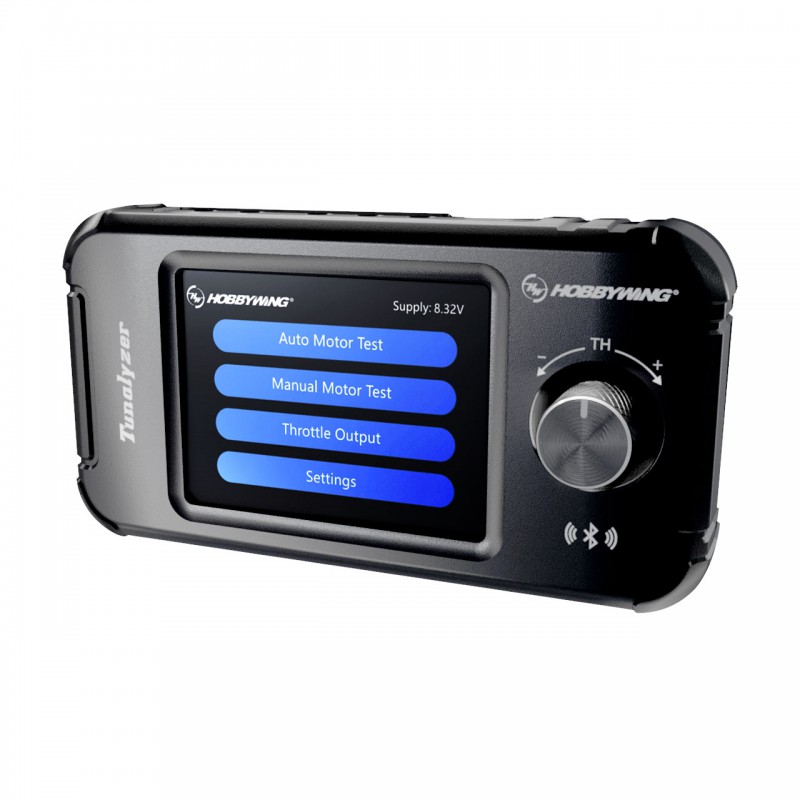

3inch Color Touch Screen Display
Ultra crisp and clear full-color touch display allow for an extremely quick and easy-to-learn interface.
Easy to read and use.

OTA Tuning and Upgrades
The Tunalyzer can double as your ESC programmer device for simple benchtop ESC tuning.
With the HW Link App, your favorite smart device can be used to connect via Bluetooth to the Tunalyzer.

Multiple motor types supported
Sensorless and Sensor Rotors can be tested. Virtually any pole count or style of a brushless motor can be tested with the Tunalyzer.

Built-in Reverse Power Supply Protection Circuit, Strong Security
Built-in reverse polarity protection circuit. Equipment will not be damaged by an incorrect battery connection.
