HW30404005

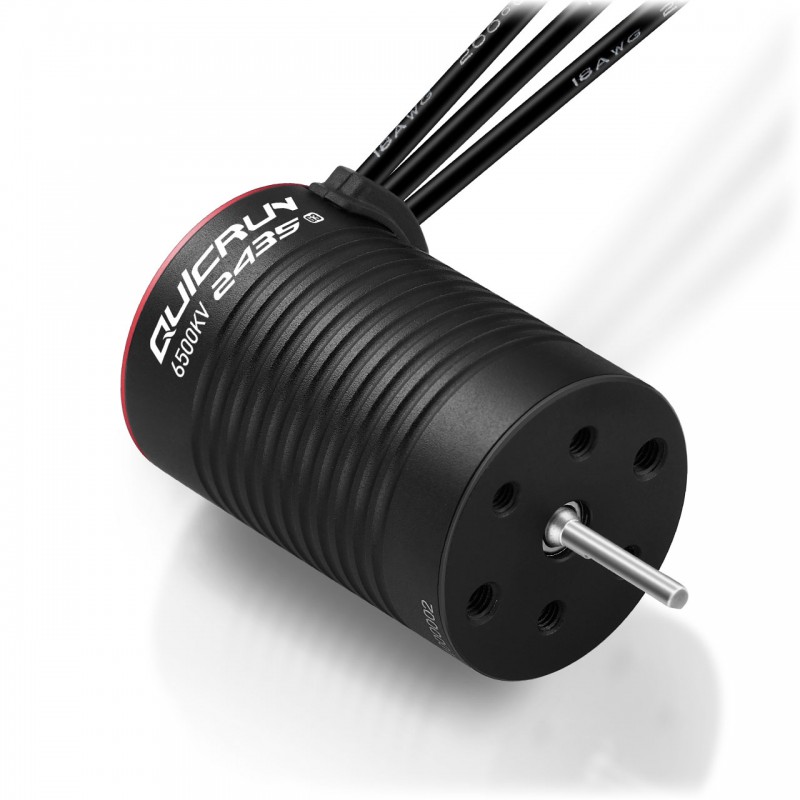

Hobbywing QuicRun 2435SL 6500kV RED G3 SE Sensorless Motor for 1/16, 1/18
On order & available within +/- 9 days
The G3 motor adopts a four-pole rotor design with stronger torque and stronger explosive power.
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.
0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant and first-line brand high-precision and high-quality bearings make the motor durable.
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without
having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.

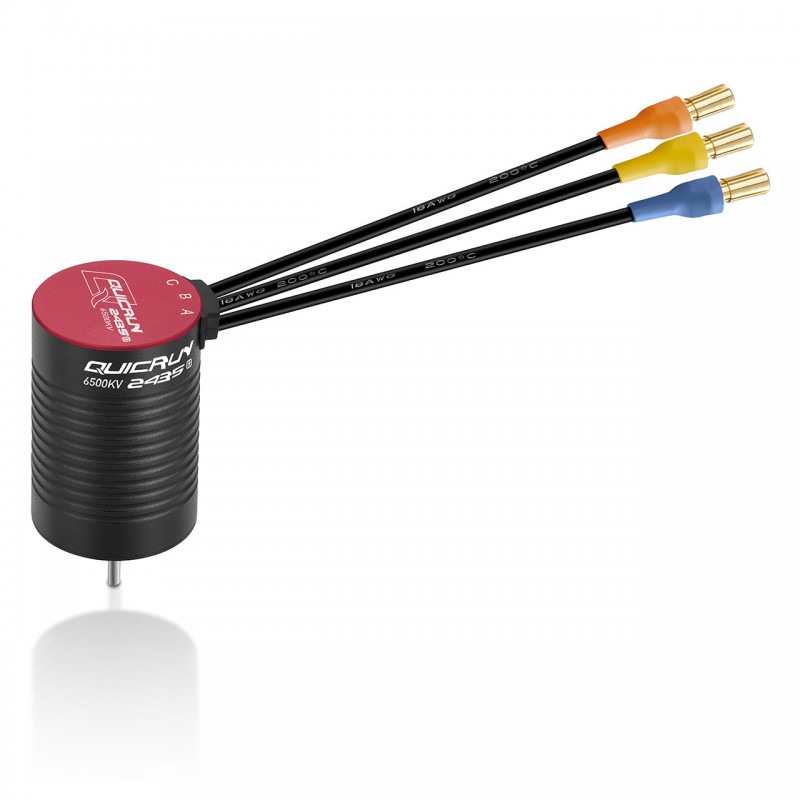

The motor output line has been welded with high-quality gold-plated plugs.
Plug and play without worrying about soldering
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.
Product Name | QuicRun 2435SL G3-6500KV | |
Product Number | 30404003 | |
Type | Scale | 1/16th ,1/18th |
Brushed/Brushless | BL | |
Sensored/Sensorless | SL | |
Pole Count | 4 | |
Relevant Parameters | KV Rating | 6500 |
LiPo Cells | 2S | |
No-load Current(A) | 3.4 | |
Size & Weight | O.D.(mm) | 24 |
Length (mm) | 36 | |
Shaft Diameter (mm) | 2 | |
Connectors (mm) | 3.5(male) | |
Weight (g) | 61.2g | |
Other Parameters | Front Bearing | D8*D3*t4 |
Rear Bearing | D8*D3*t4 | |
Applications | 1/16th ,1/18th On-road,Off-road |
