Xerun Bandit Brushless Motor G4 13.5T

HW30401857

Hobbywing

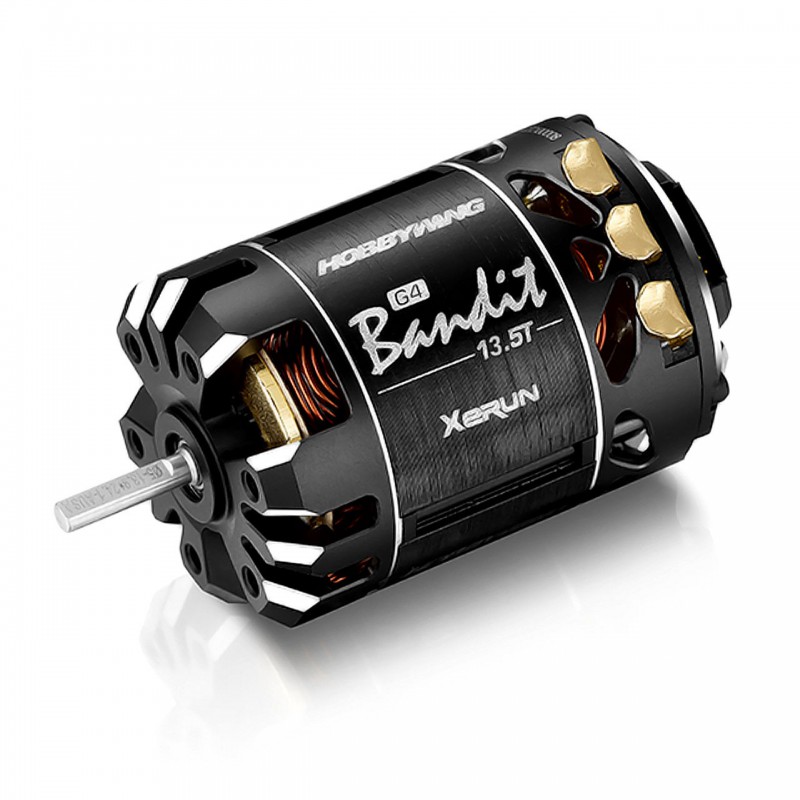

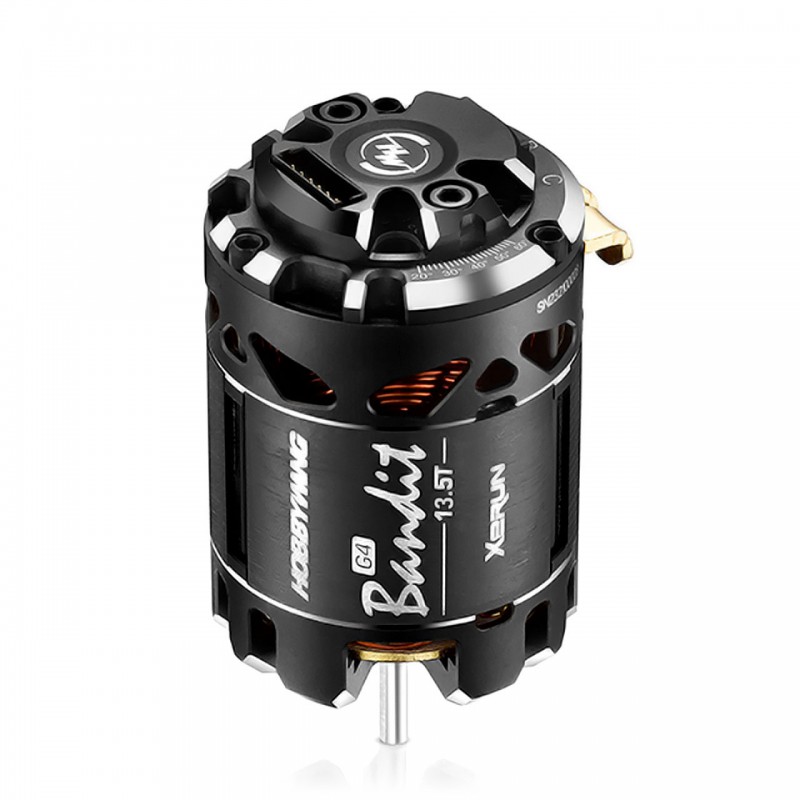

Hobbywing Xerun Bandit Brushless Motor G4 13.5T

More details

On order & available within +/- 9 days On order & available within +/- 9 days

103,99 €


More info

Xerun Bandit Brushless Motor G4 13.5T/17.5T


High output, specially designed for 1/10th Outlaw competition
Compared with the Bandit G2R motor,

  • The maximum output power Bandit G4 13.5T are further increased by 18%
  • The maximum output power Bandit G4 17.5T are further increased by 15%


20-60degrees fully-adjustable mechanical timing, insane power
The motor has a fully-adjustable mechanical timing from 20 to 60 degrees. The motor is able to provide insane power to meet the power requirements of various applications when the timing is adjusted to the maximum (60 degrees).

Unique design for faster Heat dissipation
The motor adopts a fully exposed stator core structure.
The outer stator core is directly exposed to maximize heat dissipation performance.

TORQUE/OBL dual version :
You can choose The 13.5T motors available in two versions; Torque and OBL.

  • The Torque version is equipped with a strong magnetic rotor suited for blinky racing applications and OBL Stock competition application on super big track.
  • The OBL version is equipped with a thinner magnetic rotor suited for driving OBL competition application.

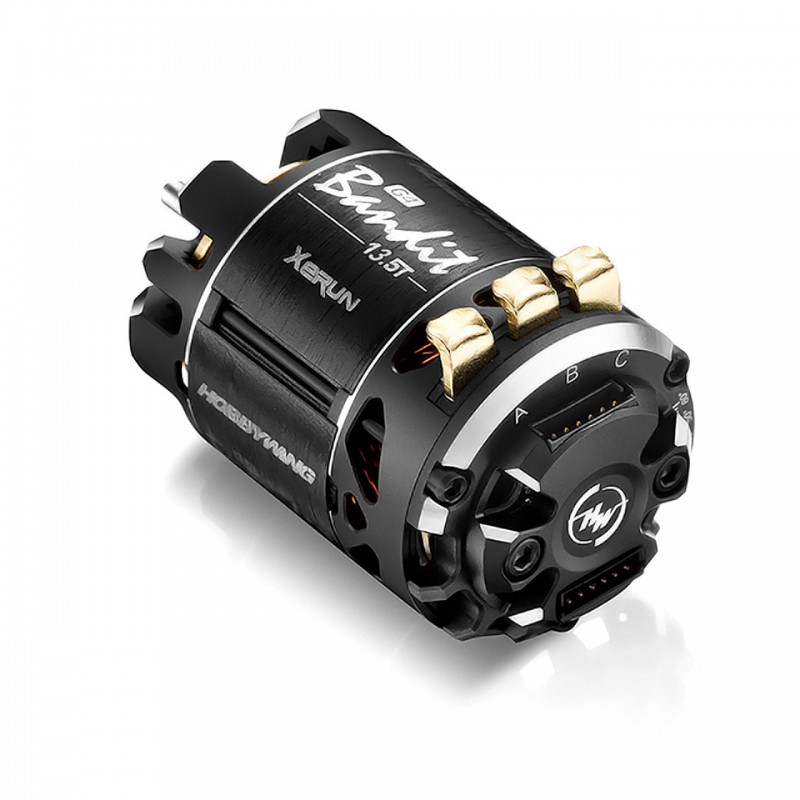

Dual Sensor port design for ease of wiring
The dual output socket design at the rear of the motor meets various wiring needs and allows for cleaner wire routing.

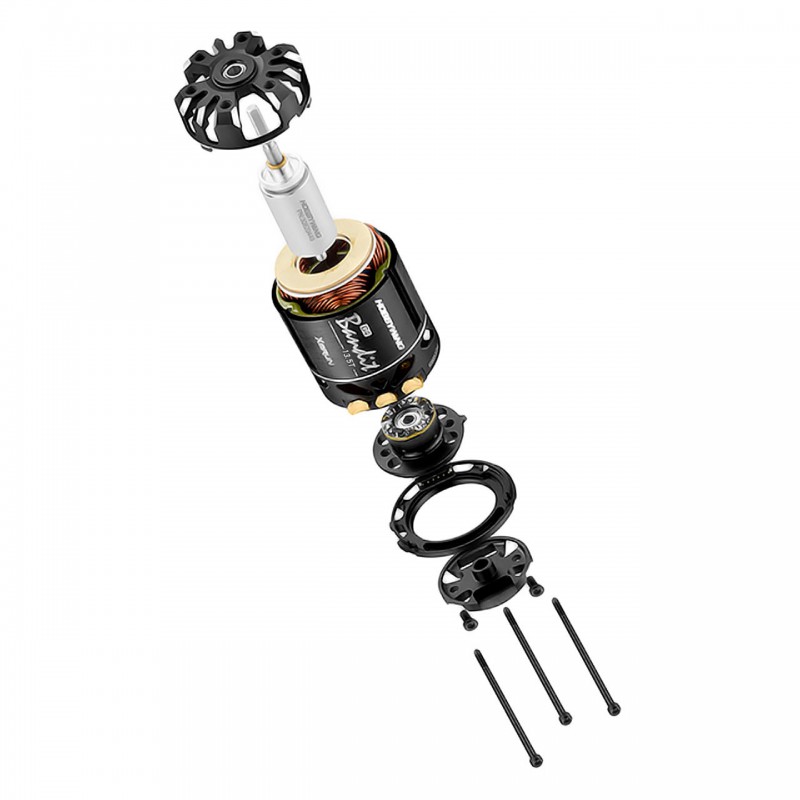

Easy to disassemble and maintain, improving efficiency
The motor adopts a modular structure design. It makes daily cleaning and maintenance convenient, effectively prolonging the life-span of the motor and maintaining high efficiencyof the motor

High quality materials ensure maximum performance
High-precision grade bearings that offer exceptional durability, maximum performance and consistency.

Specifications
Product Name XeRun Bandit G4 13.5T -TORQUE
Product Number 30401857
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
1/10th

BL

SD

2
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of
3200KV

2-3S Lipo

5.13A

387

48
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing
35.8

53.9

3.175

187.6g

D9*D4*T4

D8*D3*T4
Other Parameters Timing

Stock Rotor

Applications
20-60 Degrees(Adjustable)

Φ5-13.9*24.1-AUS

1/10th STOCK Outlaw Racing
Data sheet
  • Manufacturer : Hobbywing
