Ezrun MAX8 G2S ESC 160 Amp, 3-6s LiPo, BEC 6A
This product is in stock
More info

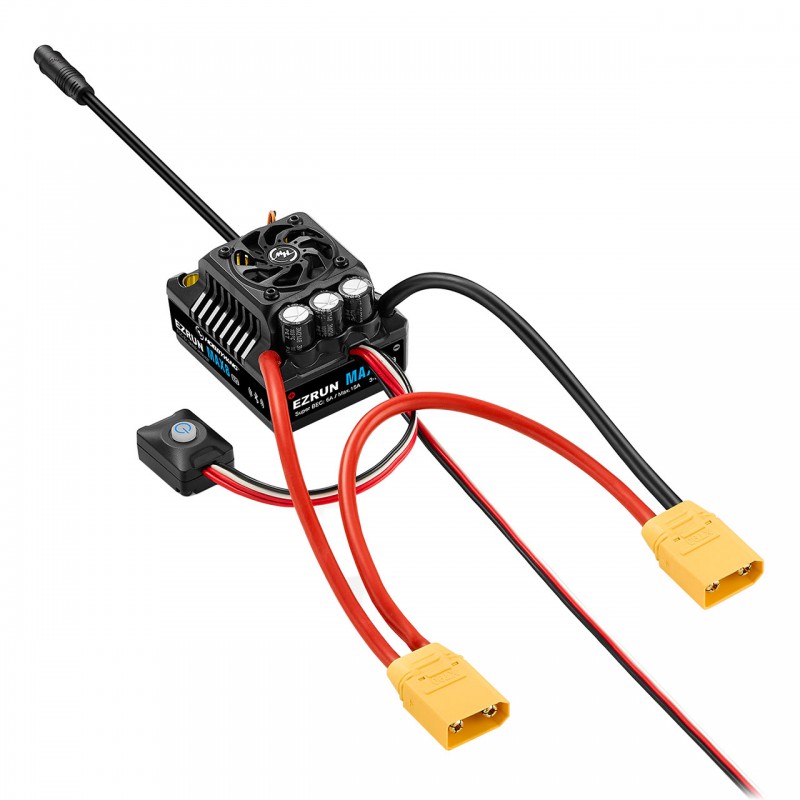

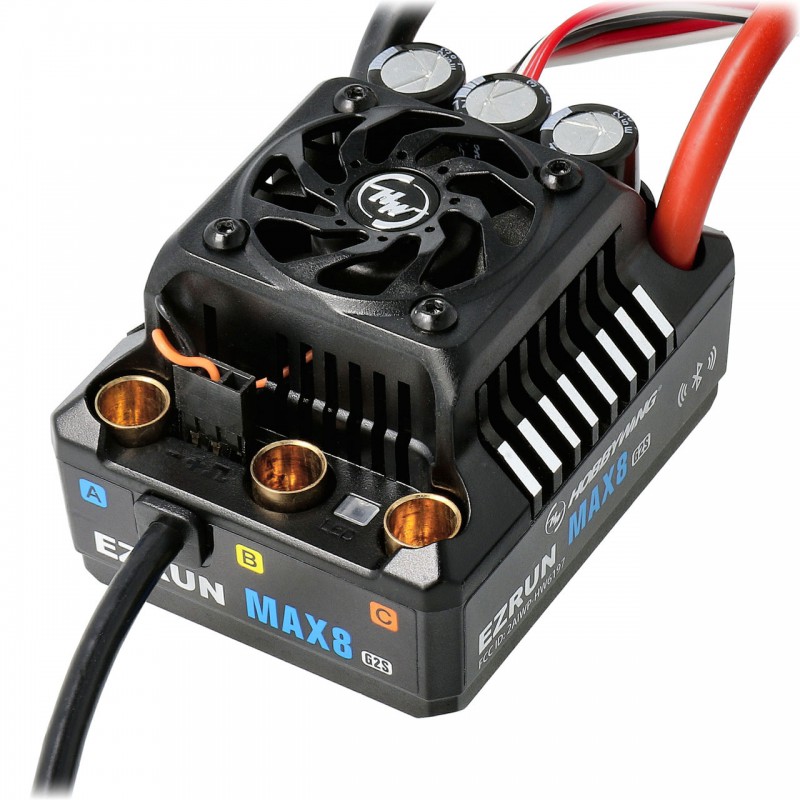

EzRun Max8 G2S ESC
Extreme output, easy to control
The ESC has power, yet smooth and linear throttle response.
Optimized hardware, increases in stability and reliability
Based on the MAX8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further improved.
Built-in Bluetooth, directly connected to the mobile APP
The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter settings, data reading, firmware upgrades other operations.
Built-in data logging function, ease of obtaining power operating status
The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.
The ESC fan does not run when the ESC temperature is low.The fan automatically turns on when the
ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only
reduces noise, saves power, but also ensures that the ESC works in a good temperature range
Efficient cooling system
A frameless fan with patented technology is used.
The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the optimal operating temperature.
The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the optimal operating temperature.
High level of protection
- Excellent waterproof and dust-proof performance IP67
- Cope with harsh environments, various climate conditions all-weather operation capabilities
1/8th power system turbo timing technology
Turbo timing that is adjustable up to 32 degrees.
Using turbo allows motor RPM to be increased through advanced ESC electronic timing.
Using turbo allows motor RPM to be increased through advanced ESC electronic timing.
Capacitor overheating protection
The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.
Super Buily-in BEC
- Max current ouptput up to 15 A
- The output voltage can be switched in three levels of 6V/7.4V/8.4V
The built in super BEC allows builders to use high power, high voltage servos.
Waterproof Sensor Harness
The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems.
Using a Hobbywing Adaptor (optional) normal/standard sensor motors can be used as well.
| Type | Scale | 1/8th |
| Brushed/Brushless | BL | |
| Sensored/Sensorless | SD | |
| Waterproof | Yes | |
| Specifications | Cont./Peak Current | 160A/1050A |
| Input Voltage | 3-6S Lipo | |
| BEC Output | 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode) | |
| Wires & Connectors | Input Wires | Black-10AWG-150mm*1 Red-10AWG-150mmX1 |
| Output Wires | NO | |
| Input Connectors | XT90 | |
| Output Connectors | 6.5 Bullet Connectors (Female) | |
| ESC Programing via | SET Button on ESC | Not Supported |
| LED Program Box | Not Supported | |
| LCD G2 Program Box | Not Supported | |
| LCD PRO | Not Supported | |
| OTA Programmer | Not Supported | |
| Program Port | Built-in Bluetooth | |
| Fan | Size | 30x30x10mm |
| Voltage Range | 6V/7.4V/8.4V | |
| Powered by | BEC | |
| Data Recording | Extreme value | Supported |
| Real-time Data | Supported | |
| Historical data (Graph) | Supported | |
| Firmware | Firmware Upgrade | Supported |
| Size & Weight | Size | 60*48*40.5mm40.5mm |
| Weight | 192g(w/Wires) | |
| Applications | Motors | Sensored brushless motors / Sensorless brushless motors |
| Vehicles | 1/8thOn-road, Short course truck, Monster truck | |
| KV Rating/T Count | With 4S Lipo: KV≤3000; | |
| With 6S Lipo: KV≤2400 4278 size motor |
- Manufacturer : Hobbywing
