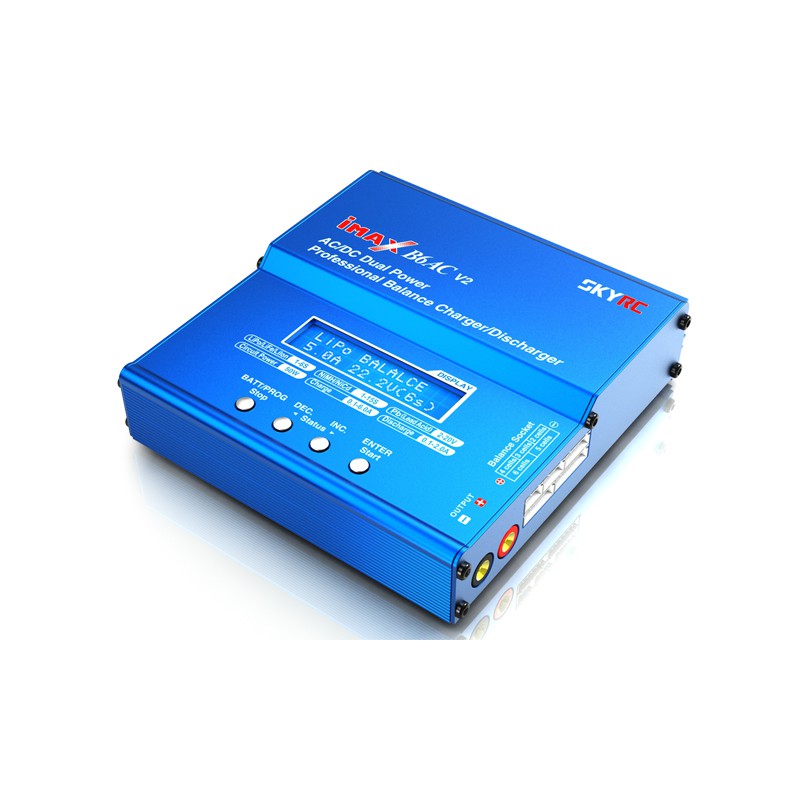

iMAX B6AC V2 AC/DC Charger

Model: SKY100008

Manufacturer: SkyRC

You can use the iMAX B6AC V2 AC/DC everywhere, powered by AC 100-240 V or DC 11-18 V, and for all the batteries types used for RC hobby. It offers a 50 W charge power.

More details

Availability: This product is in stock

69,99 €

(Recommended retail price tax incl.)

Find a Beez2b dealer near you.

More info

Lithium Battery Meter
Plug your LiPo/LiIon/ LiFe balance plug into the charger and use the battery meter as a voltage tester to quickly see the voltage readings from each cell.

Internal Resistance Meter
Use this function to measure the resistance in each of your lithium battery's cells. This helps determine the health of your cells, to be sure you are getting the most power out of them.

Terminal Voltage Control
The voltage at which the charger cuts off the charge to each cell can be adjusted.
  LiPo 4.18V-4.25V (Default 4.20V)
  LiIo 4.08V-4.20V (Default 4.10V)
  LiFe 3.58V-3.70V (Default 3.60V)

PC Connectivity
You can monitor pack voltage, cell voltage and other data during the charging process. View charge data in realtime graphs. You can also control charging functions and update the firmware on the charger when new updates come out. The software (PC Only) can be downloaded from SKYRC's website for free.

Key features

High 6.0Amp Charge Rate
Balance Charges & Balance Discharges LiPo, LiON, LiFe (1S-6S cells)
Storage Mode to Preserve Battery Longevity
Charges NiMh, NiCd (1-15 cells)
AUTO charge mode for NiMh
Charges Lead-Acid (2V-20V)
Many Safety Features
- Capacity Cutoff
- Time Limit Cutoff
- Temperature Cutoff
10 Battery Memory Storage Settings
NiMh Cycling, Charge>Discharge, up to 5 times to refresh battery life
User definable charge rates from 0.1 amps to 6.0 Amps
50 Watt max output. Charge Amperage auto adjusts depending on battery voltage. (i.e. Charge rate for 3S LiPo: 50W/11.1V = 4.5A max charge rate)
Balance Port Built In (Balances 2S-6S Batteries) (Uses Align/E-Flite/CSRC style Balance Plug Port) (Thunder Power adapter available separately, GTP1005)

Specifications

Operating Voltage Range: AC 100 - 240V / DC 11 - 18V
Circuit Power: Max. 50W for charging, Max. 5W for discharging
Charge Current Range: 0.1 - 6.0A (Amperage auto adjusts to 50W max based on battery voltage) (50W / Battery Voltage = Max Charge Amperage)
Discharge Current Range: 0.1 - 2.0A (5 Watts)
Current Drain for Balancing:: 300mAh/cell
NiCd/NiMH Battery Cell Count: 1 - 15 Cells
Lithium Battery Cell Count: 1 - 6 Series
Pb Battery Voltage: 2 to 20V
Weight: 626g
Dimensions: 135mm x 144mm x 36mm
