> eFuel 30A (540W) Power Supply
eFuel 30A (540W) Power Supply View larger

eFuel 30A (540W) Power Supply

SKY200013

SkyRC

SkyRC eFUEL 540W/30A DC power supply is designed to power your DC power equipments. It’s capable of converting standard household 100-240V AC to 12-18V DC. Continuous current can be up to 30 amperes.

More details

In stock This product is in stock

135,99 €


More info

Active PFC

PFC (Power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/30A regulated power supply, can provide higher power utilization.

Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It's capable of correction on AC input voltage and universal on a global basis.

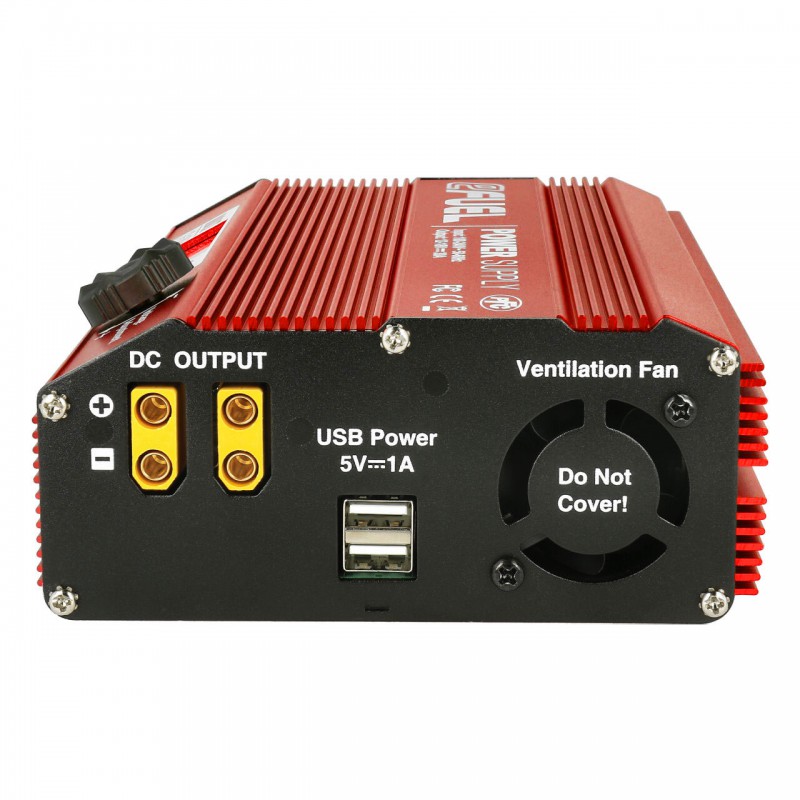

Dual DC power outputs

It supports powering two DC equipments simultaneously.

Adjustable output voltage

Output voltage is selectable from 12V to 18V.

Specifications
  • Voltage : 100-240V AC
  • Input AC Frequency : 50-60Hz
  • Output Voltage : 12-18V DC±0.5V
  • Output Current : 30A±1A
  • Current Overload Protection : ≤31A 500MS
  • Input Fuse : 10A Fuse
  • LCD Display :
    • Voltage Precision ±0.3V
    • Current Precision ±0.3A
  • Output Voltage Ripple : < 150mV
  • Power Efficiency : 89%
  • Power Factor : > 0.98
  • Over Temperature Protection : <65℃
  • Cooling Method : Cooling Fan
  • Operating Temperature : 0-40℃
  • Operating Humidity : 0-90%
  • Dimensions (L*W*H) : 218x139x59.5mm
  • Net weight : 1.62kg
Data sheet
  • Manufacturer : SkyRC
