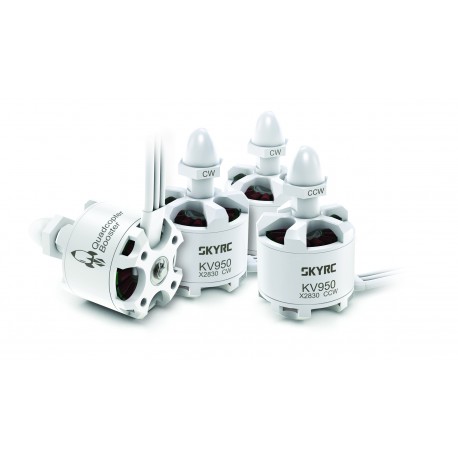

> DISC.. Quadcopter booster set - 4 motors X2830 950kv for Dji Pantom s
DISC.. Quadcopter booster set - 4 motors X2830 950kv for Dji Pantom s View larger

DISC.. Quadcopter booster set - 4 motors X2830 950kv for Dji Pantom s

SKY400014-01

SkyRC

21% MORE Thrust Power, 9% HIGH Efficiency!

More details

In stock This product is in stock

147,09 €


More info


  21% MORE Thrust Power, 9% HIGH Efficiency!
  Get this Quadcopter brushless motor set, you will get a Quadcopter Booster!
  SkyRC X2830 Brushless motor set is an ideal choice for upgrading 400-500 multi-rotor copters in the market. Compared with the original versions, SkyRC upgraded the motor set from materials, construction, appearance, performance and craft. With more power and higher efficiency, obviously you will get better flying experience.

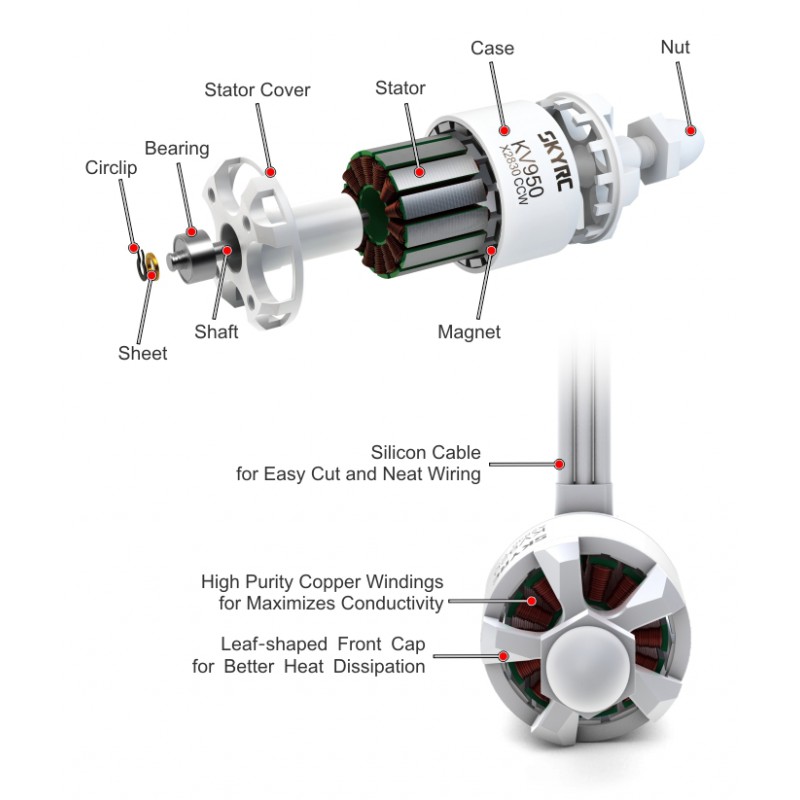

Key features
Better Material
•CNC Machined T6 Billet Aluminum Heatsink Can for Impressive and Durable Appearance
•High Quality Bearings for Less Resistance
•High Purity Copper Windings for Maximizes Conductivity

Better Construction
•Leaf-shaped Front Cap for Better Heat Dissipation
•Silicon Cable for Easy Cut and Neat Wiring

Better Craft
Balance Correction Before Leaving Factory for
Best Balance While Running

Better Performance
•21% More Thrust Power
•9% Higher Efficiency

Specifications
  • Kv : 950 RPM/V
  • Max current : 28 A
  • Max voltage : 15 V
  • Max power : 350 W
  • Internal résistance : 0,152 ohm
  • Weight : 65 g
  • Diameter : 28 mm
  • Turns : 11T
  • No load current : 0,4 A
  • Shaft diameter : 3 mm
  • Rotor : 14 poles
  • Stator : 12
Composition Kit

There are 4 pcs of motors in the set, 2pcs marked with CW and 2pcs marked with CCW. It referred to the adapter and bullet's screw thread.

Data sheet
  • Manufacturer : SkyRC
