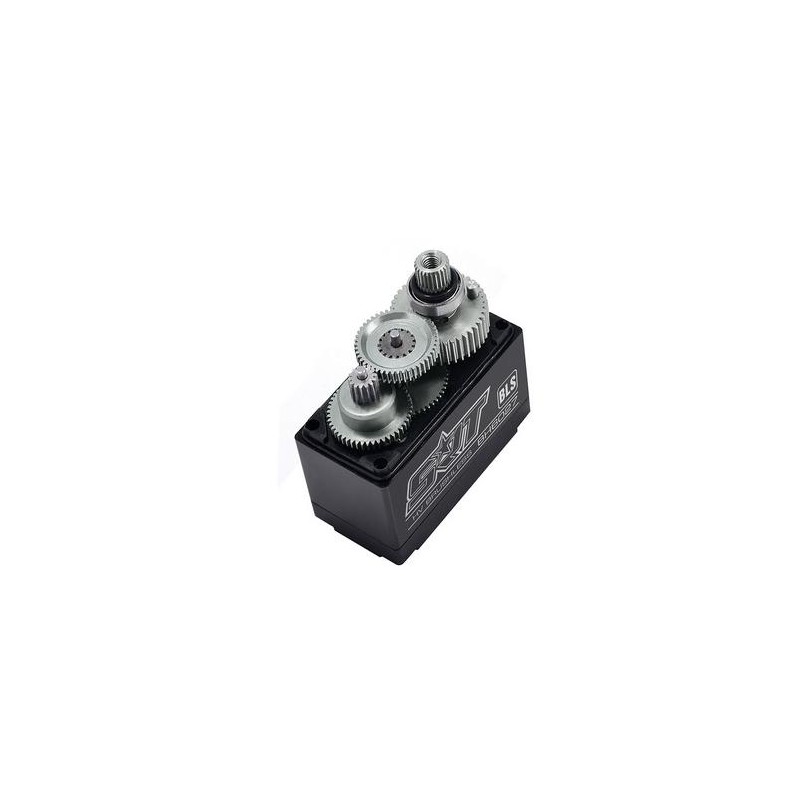

> Servo BH6027 Brushless HV 25.0kg/0.08sec @7.4V
Servo BH6027 Brushless HV 25.0kg/0.08sec @7.4V Bekijk groter

Servo BH6027 Brushless HV 25.0kg/0.08sec @7.4V

SRTBH6027

SRT

SRT Servo BH6027 Brushless HV High Speed 25.0kg

Meer details

En stock This product is in stock at our warehouse

94,90 €


Meer informatie

  • Ideal for 1/10 on road applications
  • incredible efficiency and low power consumption
  • Aluminum case for good heat dissipation
  • NMB dual main bearings
  • 25T output shaft
  • 1-Year Limited Warranty
Specifications
  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Titanium & Alu
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.10 sec/60 degrees at no load
  • operating speed (7.4v): 0.08 sec/60 degrees at no load
  • operating speed (8.4v): 0.075 sec/60 degrees at no load
  • stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
  • stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
  • stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
  • weight: 65.0g (2.29 oz)
  • connector wire length: jr 250 mm
Datasheet
  • Manufacturer : SRT
