Quicrun Fusion SE for Rock Crawler 1200kV

HW30404318

Hobbywing

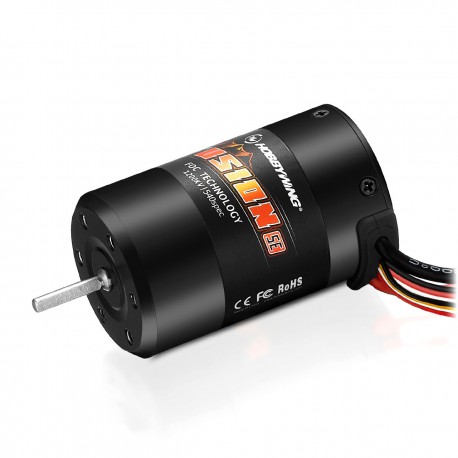

Hobbywing Quicrun Fusion SE brushless motor for Rock Crawler 1200kV

Meer details

En stock This product is in stock at our warehouse

86,99 €


Meer informatie

Aesthetically Appealinq
The Fusion SE provides an integrated space-saving design for builders. With a 58mm length, the Fusion SE has been shortened slightly to allow it to Pt into more vehicles.

FOC Powered
with proven design heritage
FOC has been a game changer for the crawling segm
ent. The extreme efPciency operates at lower temps and provides extended runtimes. The nearly silent operation provides amazing power and response at all speeds while providing extremely low RPM control. Compared to normal brushless, FOC systems provide a dramatic increase in response and power delivery.

Smart torque output and closed loop control.
Amazing control on climbs and descents.
The smart torque output control feature of the built-in FOC ESC ensures unmatched downhill and uphill driving. The ESC can automatically adjust the motor output to RPM to match the driver inputs.
Intelligent Torque Output is a smart management system that allows the ESC to adjust the motor for inclines or descent under any load to match the throttle.

U- matched hill holding
With 8 levels of drag brake force (Power) and 9 levels of Drag Brake Rate, drivers can fine-tune their vehicle' s hill-holding power and general driving. Overall, drag brakes can be 2 times stronger than normal brushless setups.

Designed for durability
Silicon rubber gaskets, electronic buttons, and quality hardware ensure a long life for the Fusion SE. Made to take the abuse and conditions of daily RC bashers.

Ready for all waether and track conditions
IP-67 waterproof rating ensures the Fusion SE has protection from water, dust, and about anything else that gets thrown at it. Designed to withstand all conditions time and time again.

Specifications
Product Name   QuicRun Fusion SE
Product Number   1200KV-30404318
Type Scale 1/10th
Brushed/Brushless BL
Sensored/Sensorless SD
Waterproof Waterproof
Cont./Peak Current 40A
Specifications Input Voltage 2-3S Lipo/6-9 Cell NiMH
BEC Output 6V/7.4V@4A、6A peak

  Note: 7.4V voltage can be output only when using 3S Lipo
Motor KV 1200KV
Diameter/length of Motor 36mm / 58.1mm
Shaft diameter / exposed shaft length 3.175mm / 16.5mm
Motor Poles 4

Input Wires Red-14AWG-200mm*1 / Black-14AWG-200mm*1
  Input Connectors XT60
SET Button on ESC Not Supported
  LED Program Box Supported
LCD Program Box Not Supported
OTA Programmer Not Supported
Program Port Independent programming interface(switch position)
Firmware Upgrade Not Supported
Firmware Size 36X58.1mm
  Weight 201g (including wires&connectors)
Applications Vehicles 1/10th rock crawler
Datasheet
  • Manufacturer : Hobbywing
