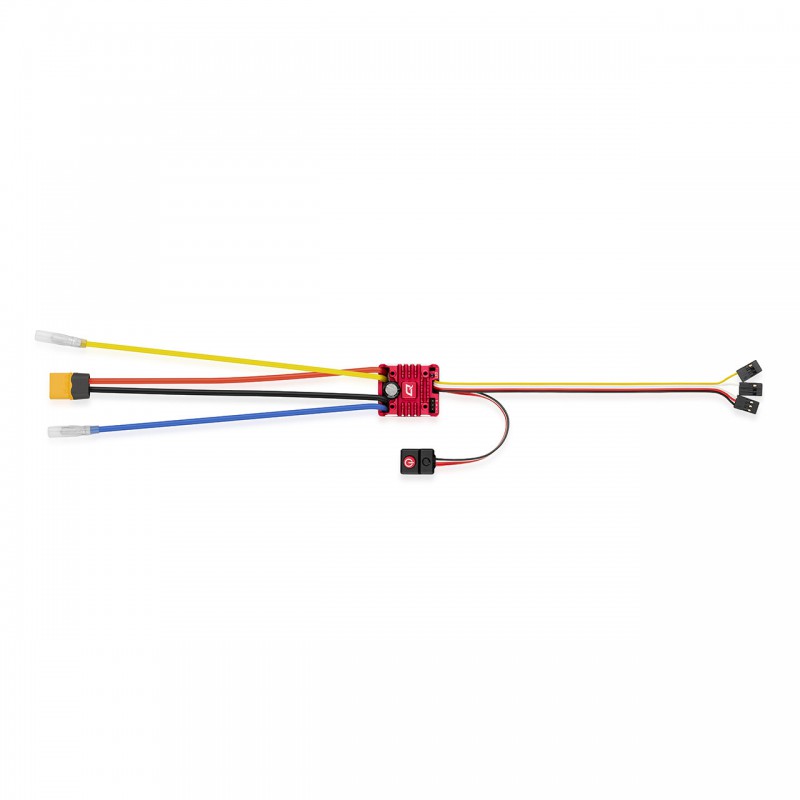

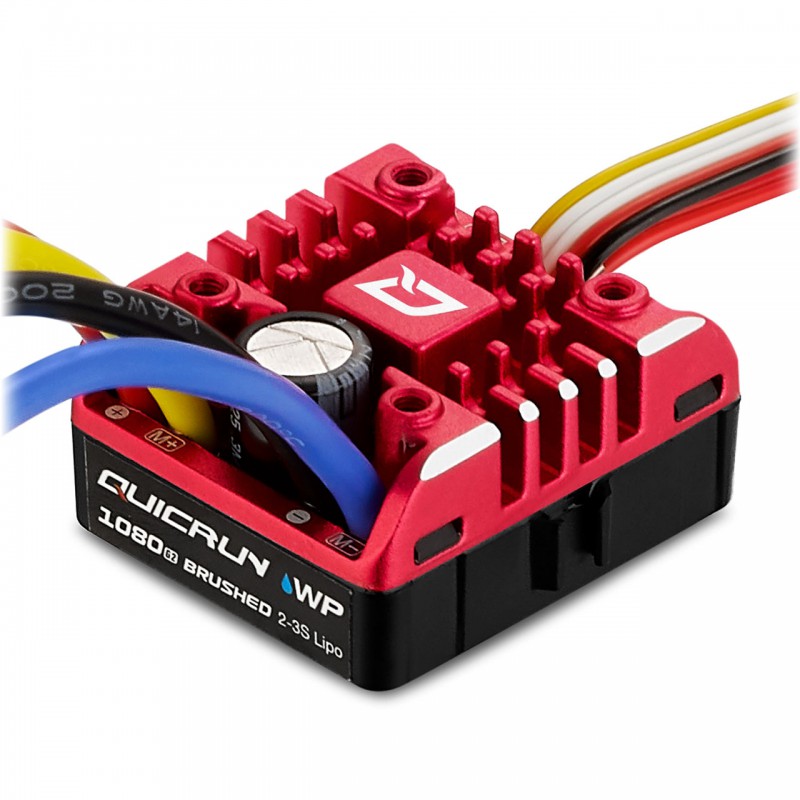

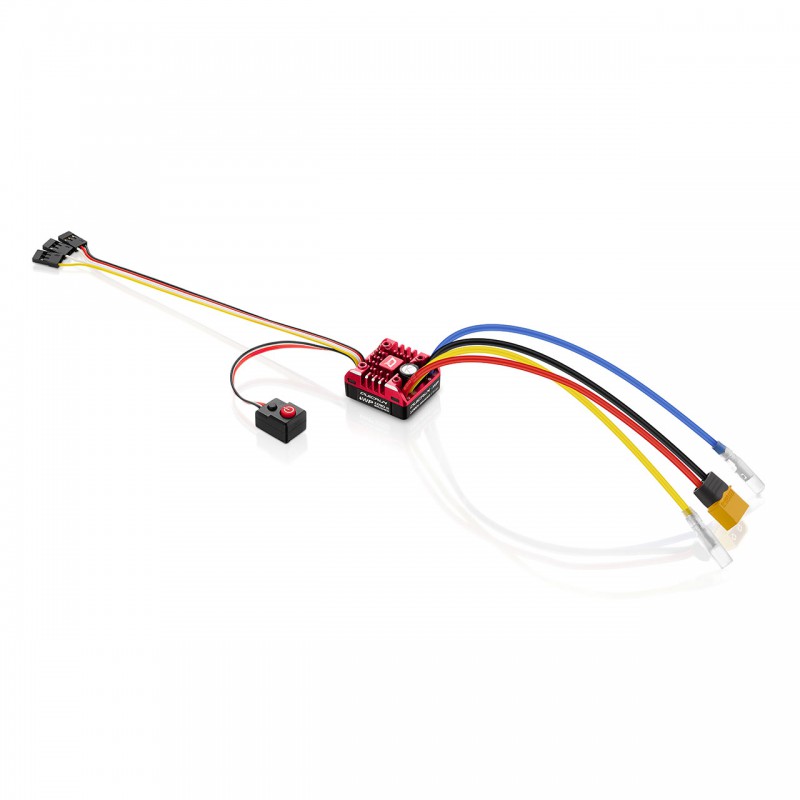

QuicRun WP1080-G2 Crawler Brushed Regler 80A, BEC 4A

Model: HW30120202

Manufacturer: Hobbywing

Hobbywing QuicRun WP1080-G2 Crawler Brushed Regler 80A, BEC 4A

Meer details

Beschikbaarheid: This product is in stock at our warehouse

51,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Meer informatie

QUICRUN WP 1080 G2

The first "real car mode"

The direction of the motor is switchable in real time by using the idle channel on the transmitter.

Pull the trigger for "forward"
Push the trigger for "brake"
Pull the trigger with the "reverse channel" on will give you "reverse" (Requires an open channel on the receiver)

This new feature will provide the user with a unique experience unlike any other.

Four runningmodes available

Fits a variety of control habits and control needs

Forward with brakes
Forward, reverse with brakes
Forward and reverse
Real car runningmode

Real-time adjustment of drag braking force

Adjust the drag brake force in real time!
With the Drag brake Force Signal connected to an open channel on the receiver,
users can adjust the drag brake force on the fly with out the need to connect the Programmer.
(Requires open channel on receiver)

Temperature control upgrade

TThe New design reduces operating temperatures of the ESC by about 15 degrees improving reliability.
The ESC also has a fan mount to meet additional cooling needs.

BEC Upgrade

The BEC Upgrade includes maximum output to 6A and provides 6V/7.4V/8.4V output options to support most of the servos on the market.

Multiple, easy to set parameters

15 Programmable Items let's drivers easily tune their vehicle with the LED Programming Box connected to the programming port.

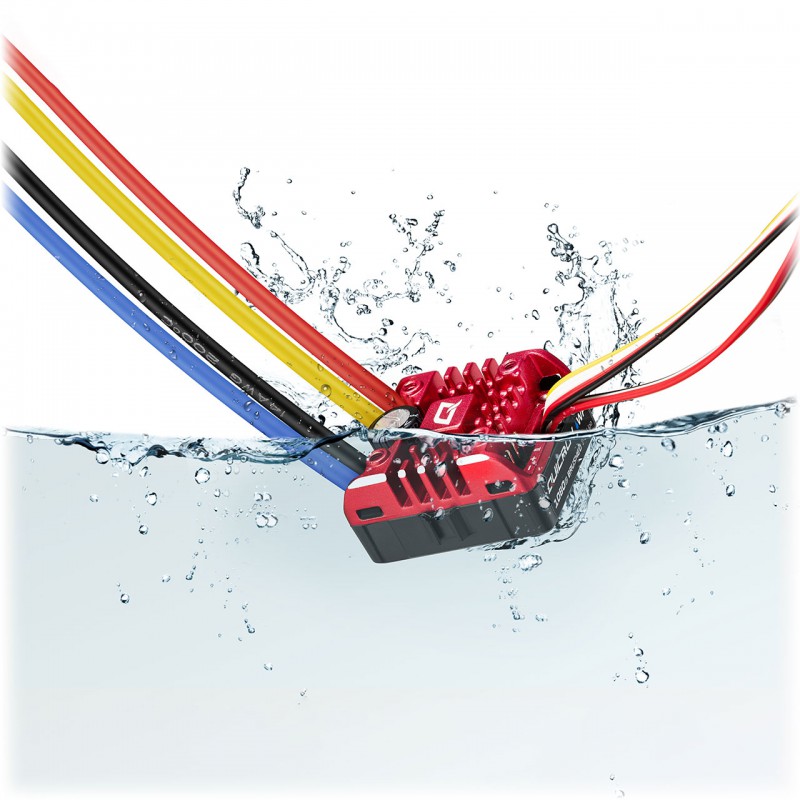

IP67 protection

IP67 Standard for being waterproof and dust-proof for various weather conditions, and driving surfaces.

Specifications

Product Name		QuicRun WP 1080 G2 Brushed
Product Number		30120202
Type	Scale	1/10^th

	Brushed/Brushless	Brushed

	Waterproof	Waterproof
Specifications	Cont./Peak Current	80A/400A

	Input Voltage	2-3S Lipo

	BEC Output	6V/7.4V/8.4V @4A，6A Peak.

		Note: 7.4V voltage can be output only when using 3S Lipo

Wires & Connectors	Input Wires	Black-14AWG-200mm / Red-14AWG-200mm

	Output Wires	Yellow-14AWG-200mm / Blue-14AWG-200mm

	Input Connectors	XT60 Connectors

	Output Connectors	4.0mm Bullet Connectors (Female)
ESC Programing via	SET Button on ESC	Supported

	LED Program Box	Supported

	LCD G2 Program Box	Not Supported

	OTA Programmer	Not Supported

	Program Port	Separate Program Port

Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size	37.2X31.9X18.4mm

	Weight	70.2g (w/Wires)
Applications	Motors	540&550 Size Brushed Motors

	Vehicles	1/10^th Rock Crawlers

Datasheet

Manufacturer : Hobbywing
