Glider 2000mm : ASW-28 PNP kit

DBASW17200

Derbee

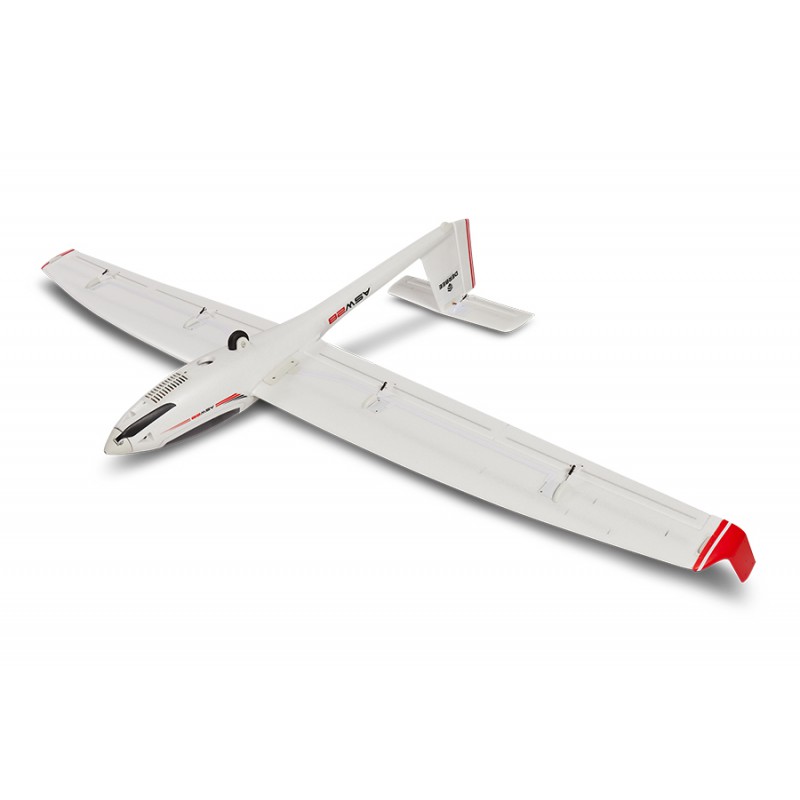

The 2000mm ASW 28 glider is one of the most maneuverable, highest-performance glider from Top RC Hobby.

Meer details

En stock This product is in stock at our warehouse

279,19 €


Meer informatie

Highly scaled, Crash Resistant allows for aerobatic maneuvers easily.

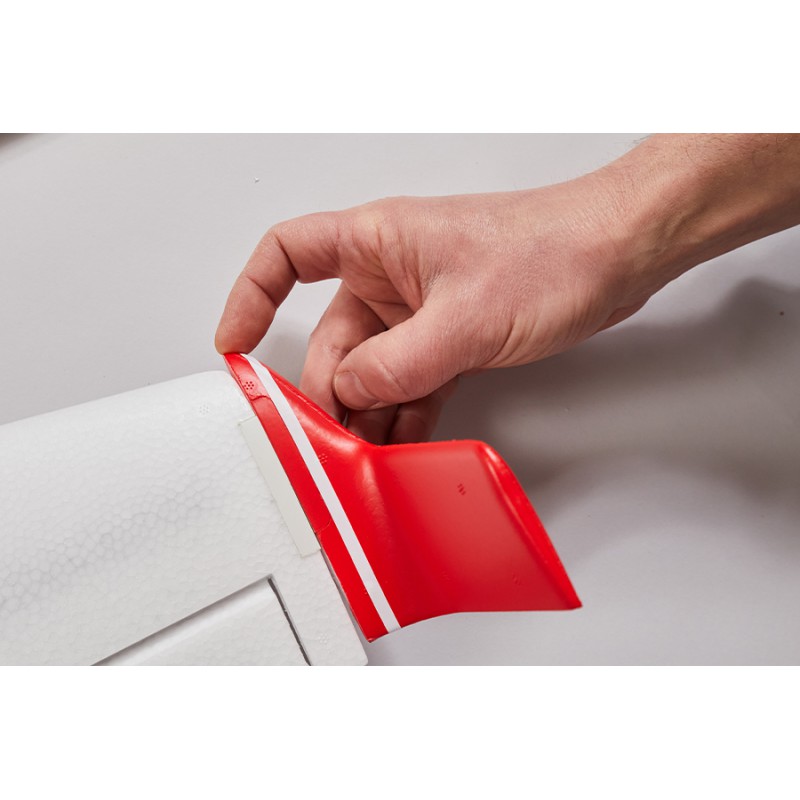

As a high-scaled glider, the ASW 28 maintains the same dihedral angle as the real aircraft. The detachable winglets allows hobbyists to choose to attach or detach winglets according to personal preferences, allowing you to quickly experience one plane, two different flying funs.

Meanwhile, ASW 28 adopts durable EPO materials and built-in multiple carbon tubes, which greatly improves the crash resistance. Hobbyists can easily control various aerobatic maneuvers, such as diving, rolling and etc.

Using the up-to-date technology, quick assembly with no glue required

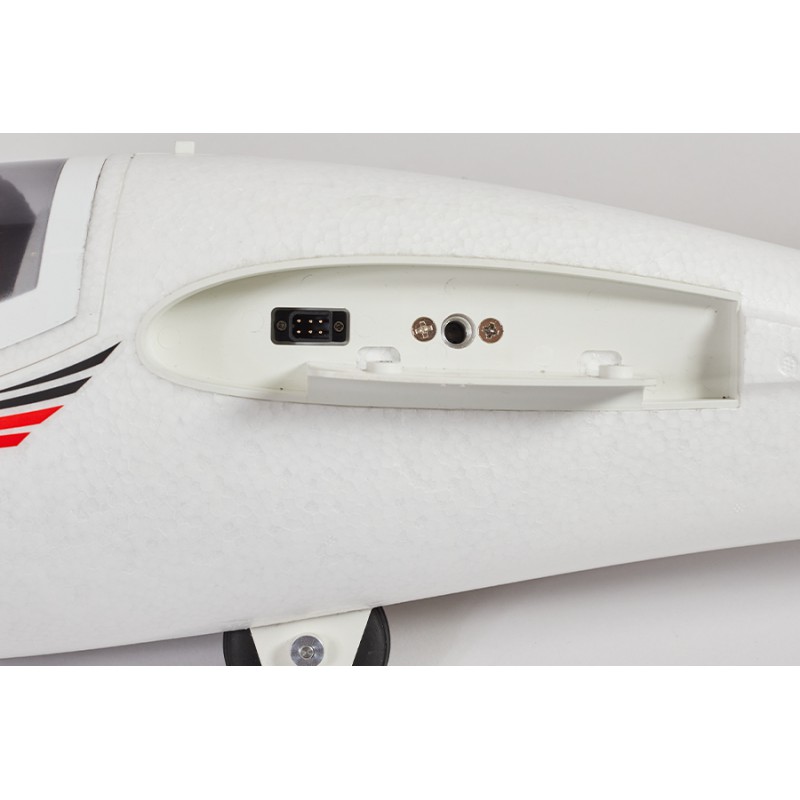

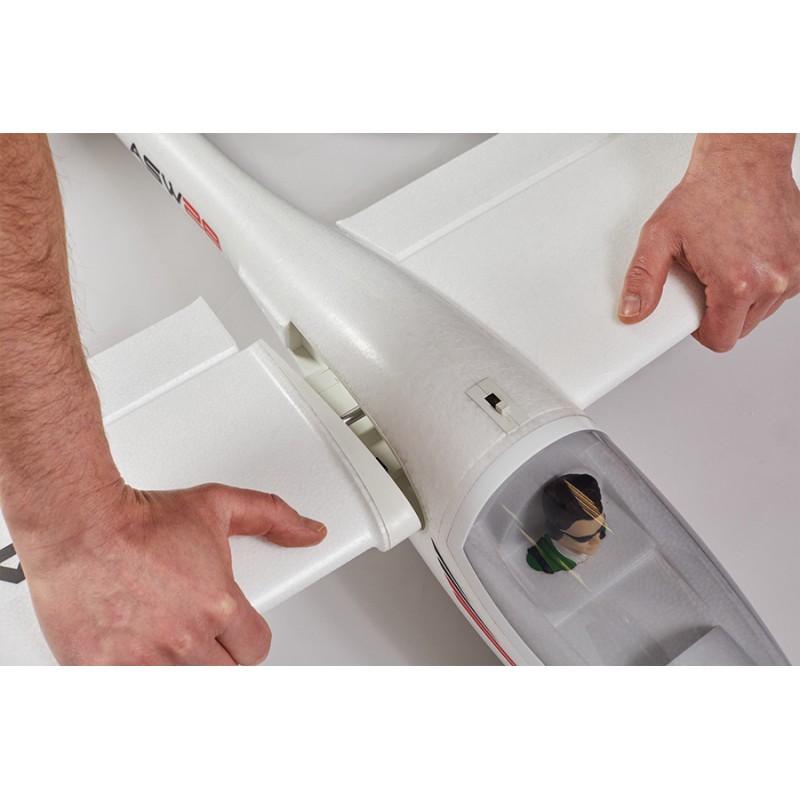

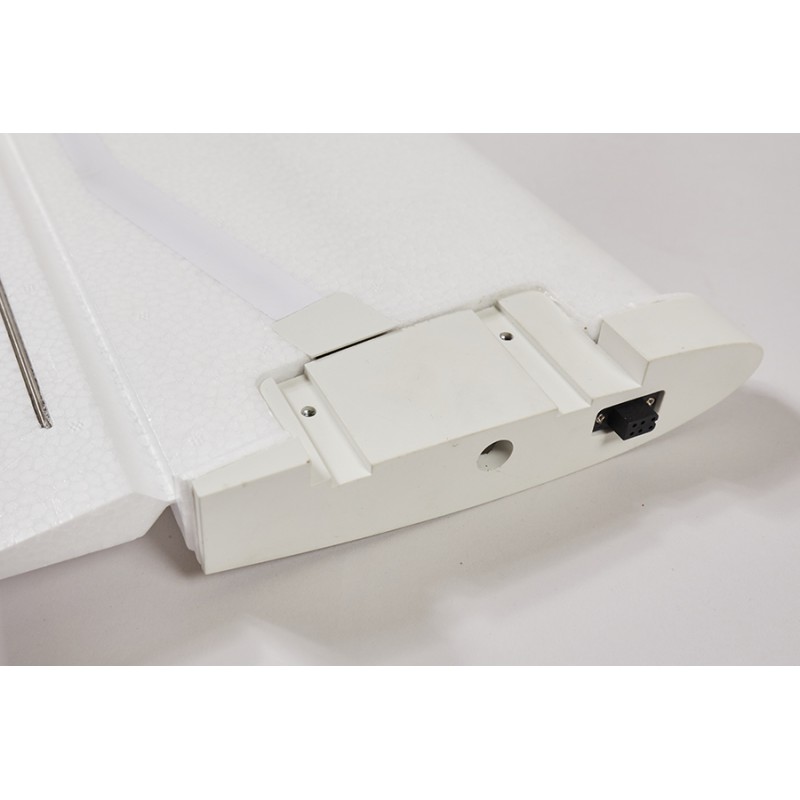

The main body of the fuselage has a built-in metal plug-in structure, using the latest integrated wire plug, no manual wiring, and no glue required for assembly, with just 6 screws, and the assembly can be completed quickly in about 2 minutes.

Three NAZA air inlets are located at the nose of the aircraft, and the large air outlet at the bottom of the fuselage effectively provides cooling for the motor, ESC, and battery.

Servo boxes and protective covers are designed to make servo maintenance convenient and to protect servos during landing.

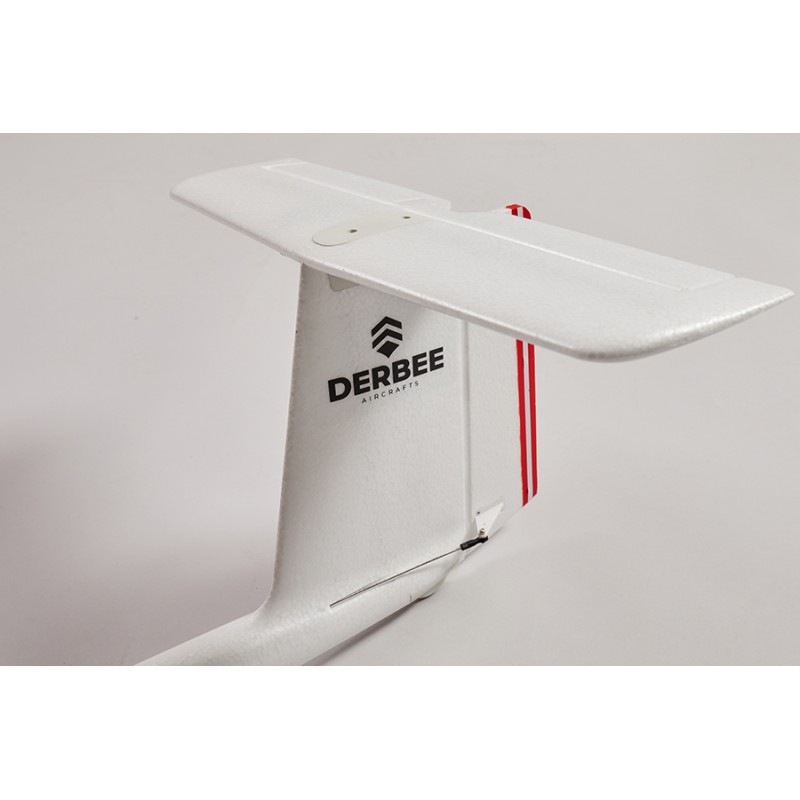

There are three fiber hinges designed in the vertical tail to effectively prevent breakage during flight and landing.

A great power system makes flying more enjoyable.

ASW 28 adopts an outstanding power system, consisting of a 3542-850KV motor, 40A Hobbywing ESC, all-metal gear servos, efficient folded propellers, and functional flaps design, as well as the latest ball links technology, zero virtual positions with precision control, ensuring excellent gliding performances.

In addition, the ASW 28's large battery compartment allows 3-4S 2200-3300mAh batteries, and the flight time can be up to 10-15 minutes, giving you more time to enjoy flying.

Key features
  • Stable and lightweight EPO hard foam construction with carbon reinforcements
  • Quick assembly without glue
  • Assembly with 6 screws
  • Functional landing flaps
  • Removable winglets
  • Large air inlets and outlets for optimum cooling of the electronics
  • Servo covers

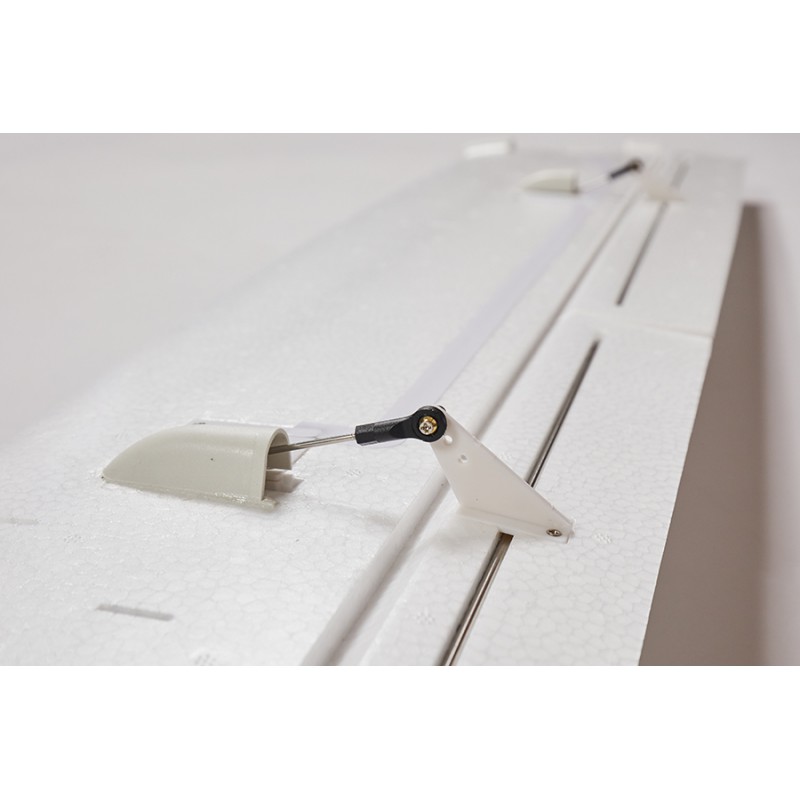

  • Modern ball-joint control horns with zero backlash for precise steering
  • Rudder reinforced with fibre hinges
  • Stable landing gear
  • Powerful 850KV brushless motor and 40A regulator fitted
  • 6 servos with metal gears fitted

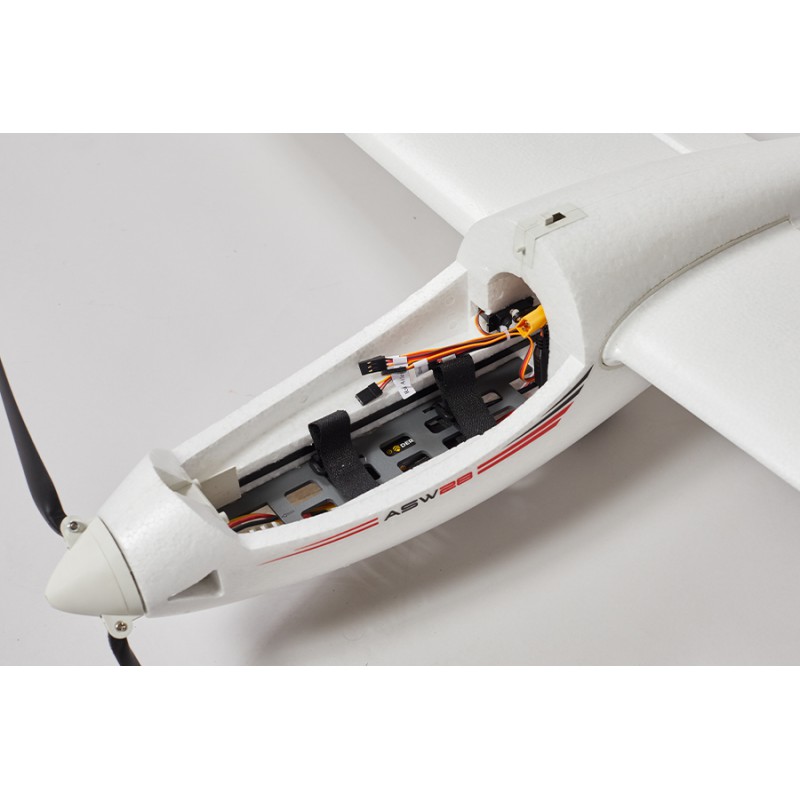

  • Large battery compartment under removable, locking canopy
  • Built-in painted pilot figure
  • Folding propeller included
  • Decal sheet included for customisation
Specifications

Wingspan :

2020 mm

Lenght :

1165 mm

Weight :

1800 gr

Propulsion :

Bushless 3542-KV850

ESC :

40A

Servos :

(6) 9gr MG

What you need to complete
  • Battery: type 3-4S LiPo 2200-3300 mAh
  • Charger
Datasheet
  • Manufacturer : Derbee
