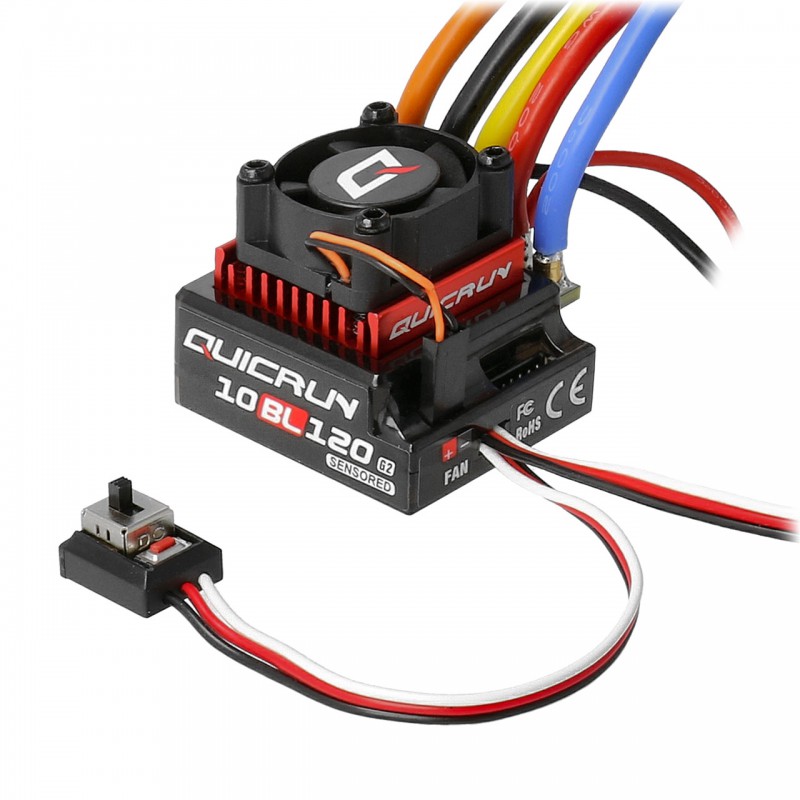

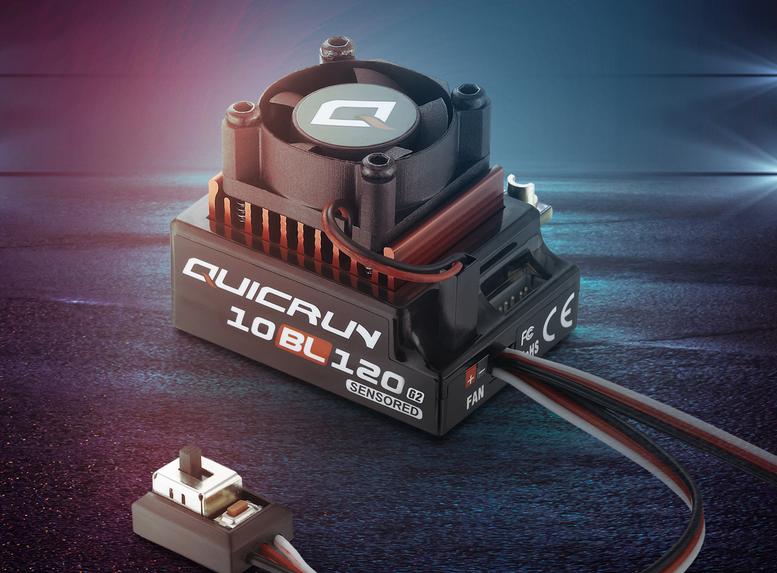

QuicRun 10BL120G2 120A Sensored ESC 2-3s

HW30125002

Hobbywing

Hobbywing QuicRun10BL120 Sensored G2 ESC

Meer details

En stock This product is in stock at our warehouse

59,99 €


Meer informatie

Best value for money, Easy to use


The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup.
The perfect choice for 10th scale setups.

BEC upgrade, stronger driver


The BEC's continuous output current has been upgraded from 3A to 4A.
The maximum current is at 7A, and the output voltage is now 6V/7.4Vadjustable.
Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.

Boost/Turbo timing technology


The 10BL120 G2 features adjustable electronic timing.
Turbo and Boost can be used to fine tune power delivery and get the most out of your setup.
Up to 32 degrees of electronic timing is available.

Combining software and hardware to provide comprehensive protection


The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.

Abundance programming methods


Multiple programming/tuning methods are supported.
Works with the Multifunction LCD programming Box Pro,
The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.

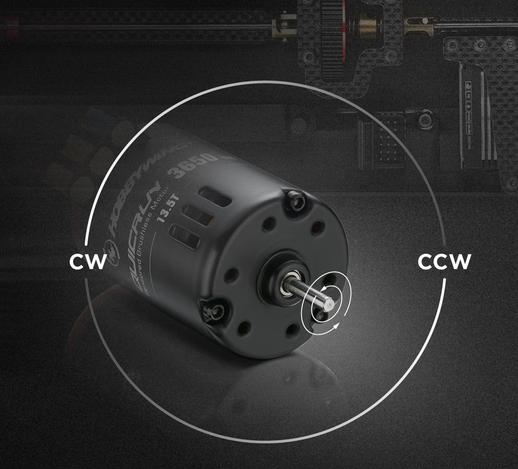

Supports Motor Rotation

The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.

Specifications
Product Name QUICRUN WP 10BL120 G2
Product Number 30125002
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
1/10th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output
120A/760A

2-3S Lipo

Switch Mode 6V/7.4V @4A
Wires & Connectors Input Wires

Output Connectors

Input Connectors

Output Connecotors
Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1

Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD Pro Program Box

OTA Programmer

Program Port
Supported

Supported

Supported

Not Supported

Separate Program Port
Fan Size

Output Wires

Input Connectors
25x25x10mm

5-8.4V

Powered by BEC
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
43*36.8*32.3mm

101.5g (Included wires&connectors)
Applications Motors

Vehicles

KV Rating/T Count
Sensorless / Sensored Brushless Motor

1/10th Touring Cars/Buggies/Drift Cars

2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor
Datasheet
  • Manufacturer : Hobbywing
