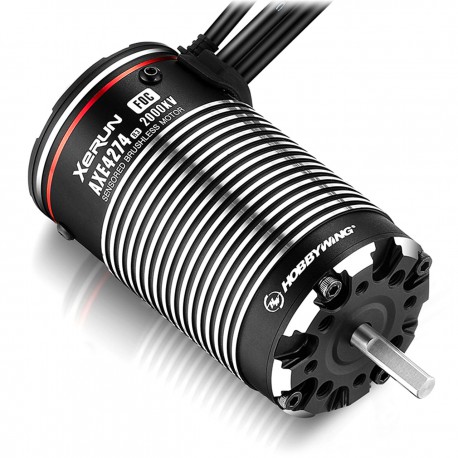

- The XeRun AXE R3 motor supports up to 6S LiPo
- Compared to the R2 motor, the maximum output power is increased by 106% and is 11% more efficient
Note:
The default mounting hole is 25.4mm.
Please purchase the AXE 4274 motor conversion board if the mounting hole is 30mm.
Two KV options, wide application
AXE 4274 R3 is available in both 1700/2000KV options.
It meets various application requirements for 1/8th, 1/7th,and 1/6th scale crawlers.
Excellent protection IP67
The AXE R3 motor is now IP67 protected.
The motor has the proven Hobbywing water proof sensor harness design to cope with complex and various climatic conditions
Precision Magnetic sensor
The motor has a built-in magnetic encoding sensor.
The accuracy 60 times better compared to the traditional sensor commonly used in brushless motors.
The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.
The accuracy 60 times better compared to the traditional sensor commonly used in brushless motors.
The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.
Supports optional motor adapter, strong compatibility
The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes, and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, an optional motor mounting conversion plate is available for purchase.
Premium materials, performance upgrade
- 1 - high quality aluminum CNC shell
- 2 - premium brand high-quality bearings
- 3 - premium brand ultra-thinsilicon steel sheets
- 4 - 200°C high-temperature-resistant enameled wire
- 5 - high-toughness alloyoutput shaft
