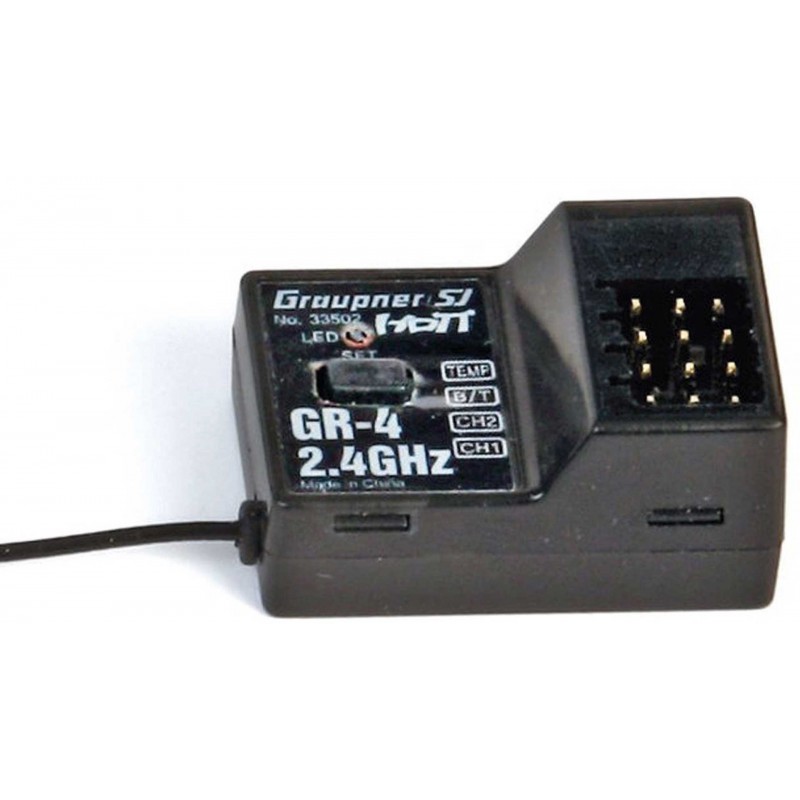

GR-4 HoTT - 2.4 GHz receiver Bekijk groter

GR-4 HoTT - 2.4 GHz receiver

GRA33502

Graupner

Graupner - GR-4 2.4 GHz Hott Receiver - 2 CH

Meer details

En stock This product is in stock at our warehouse

53,23 €


Meer informatie

Compatible with all our HoTT 2.4 GHz telemetry radios, the Graupner GR-4 HoTT is a 2 channel receiver with bi-directional data transmission for real-time information regarding system health and performance precision and function.

Its compact size and top connector access makes the GR-4 well suited for any type of installation, especially where space is limited. The GR-4 HoTT receiver is packed with standard features such as telemetry for signal strength, receiver voltage, temperature and main pack voltage (available with sensor, sold separately). With a range of up to 500 meters and full spectrum utilization the GR-4 guarantees a reliable connection even at the most congested race tracks.


Features:

  • Up to 75 channel hopping for extreme operating reliability and immunity to external interference
  • Compact and lightweight
  • Wireless setup
  • Fail Safe and Hold function
  • Low power consumption
  • Real-time wireless telemetry data recording
  • Ultra-fast re-binding with HoTT radio
  • Wide voltage ranges from 2.6V to 8.4V
  • Built-in telemetry for temperatures, receiver voltage and receiver strength monitoring
Specifications
  •     Channels: 2
  •     Approx. dimensions: 30 x 21 x 15 mm
  •     Weight approx.: 6 g
  •     Frequency: 2400 ... 2483.5 MHz
  •     Modulation: 2.4 GHz FHSS
  •     Range: approx. 500 m
  •     Power consumption: 35 mA
  •     Operating voltage: (2.5V) 3.6V to 8.4V
  •     Antenna length: 1x wire 145 (antenna 30) mm
  •     Temperature range: -15 to +70°C
Datasheet
  • Manufacturer : Graupner
