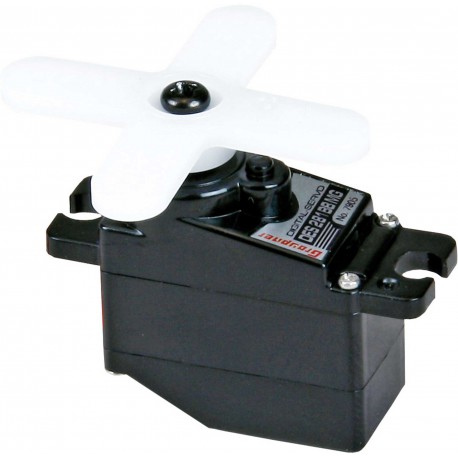

DES 281 BB MG Digital Servo
Meer informatie
Especially suitable for indoor models and park flyers.
- Mounting dimensions in relation to output the same as C261 servo
- Smallest dimensions
- Absolutely light weight
- Parameters adjustable via PC software
- ball bearings
- metal gearbox
FEATURES
- Digital servo featuring dynamic torque, excellent Speed, superior response and holding torque
- Programmable Digital Circuit and SMT circuitry
- 1024 high resolution
- Supporting 1-16µ depending on programming
- Supports a wide range of frame rates 20Hz-400Hz
- 10-bit processing circuit
| Bearing: | • |
|---|---|
| Servo Speed sec./60° (4,8V) HV: | 0,18 |
| Servo Speed sec./60° (6V) HV: | 0,15 |
| Servo Torque kg/cm (4,8V) HV: | 1,8 |
| Servo Torque kg/cm (6V) HV: | 2,0 |
| Pinion material: | Metall |
| Weight (g): | 2 kg |
| Length (mm): | 21,5 |
| Wide (mm): | 11,2 |
| Height (mm): | 21,2 |
| Servo type: | Digital |
| Gear tooth: | 23Z |
| Input Voltage (V) HV: | 4,8 - 6,0 |
- Manufacturer : Graupner
