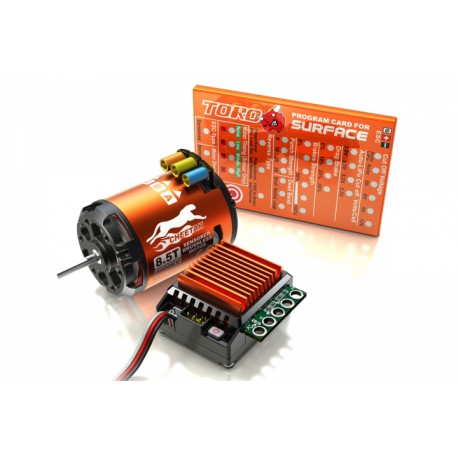

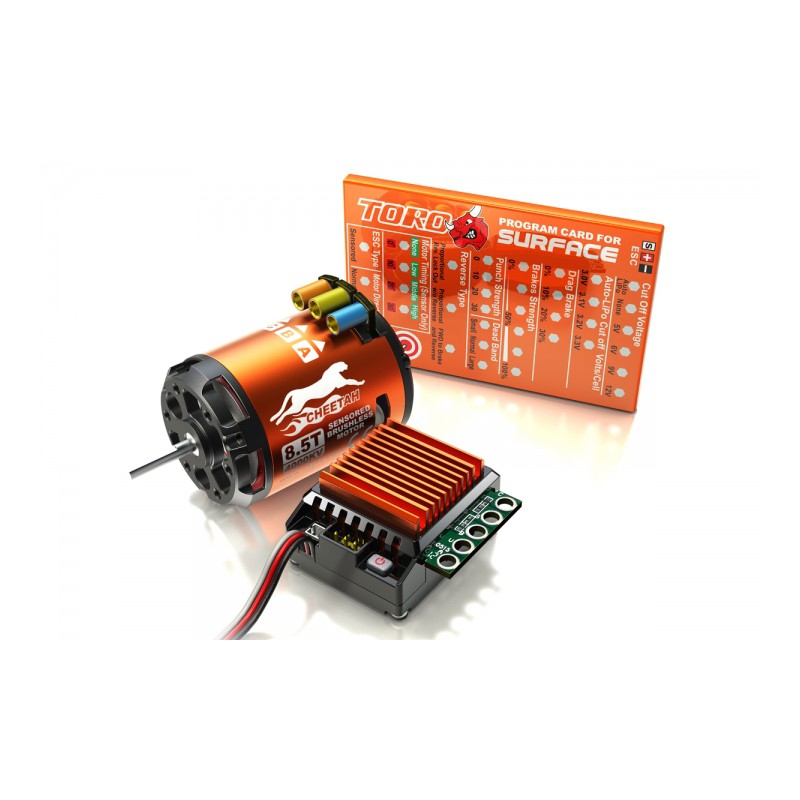

Cheetah 10 S60A ESC + 3250KV/10.5T 2P BL Motor

Cheetah 1/10th CS60 60A Sensored ESC

It is designed for 1/10th and 1/12th scale car with the use of 2-3 cells LiPo battery and 5-9 NiMH battery. Equipped with 6V/3A BEC, it doesn't need a separate receiver pack. With Program Card, you could set cut-off voltage, brake and punch strength, drag brake and other parameters.

Small size :

Built-in electronic ON/OFF switch :

High efficient heat transfer :

Support both sensored and sensorless motors :

Easy programming :

Simply connect it to the Program Card, you could do ESC programming  in a short time and get ready for next run.

Cheetah 1/10th Sensored Motor

Cheetah 1/10th 60A Sensored Combo set is available with five kinds of motors (8.5T 4000KV/ 10.5T 3250KV/ 13.5T 2590KV/ 17.5T 1870KV/21.5T 1600KV). You could mix and match gearing and number of cells that they are using to create a power system that can be mild or wild with any of the motors.

Sensor-Based for Excellent Torque and Low-Speed Drivability :

Cheetah 1/10th CS60 60 A Sensored ESC

• Compatible vehicles : 1/10 & 1/12
• Compatible batteries : 2-3S Lipo / 5-9S NiMH.
• BEC : 6V / 3A
• Dimensions : 39 x 38 x 20 mm

Moteur Cheetah Kv 3250

• Power : 300 W
• Rotor : 12,5 mm
• Kv : 3250 RPM/V
• Weight : 165 g
• Shaft diameter : 3.175 mm
• Resistance : 21.3 mΩ
• Lipo : 2-3S
• Touring Car 1/10 Medium Track : 5.6:1
• Touring Car 1/10 Small Track : 6.3:1

The above suggestion is based on using 12.5mm rotor and esc without timing setting.

• Cheetah 10.5 T brushless motor
• Cheetah 1/10th CS60 60A Sensored ESC
• Programmation card
