> DISC.. ESC Air 10A (2-3S)
DISC.. ESC Air 10A (2-3S) Bekijk groter

DISC.. ESC Air 10A (2-3S)

TMOESC10AIR

T-Motor

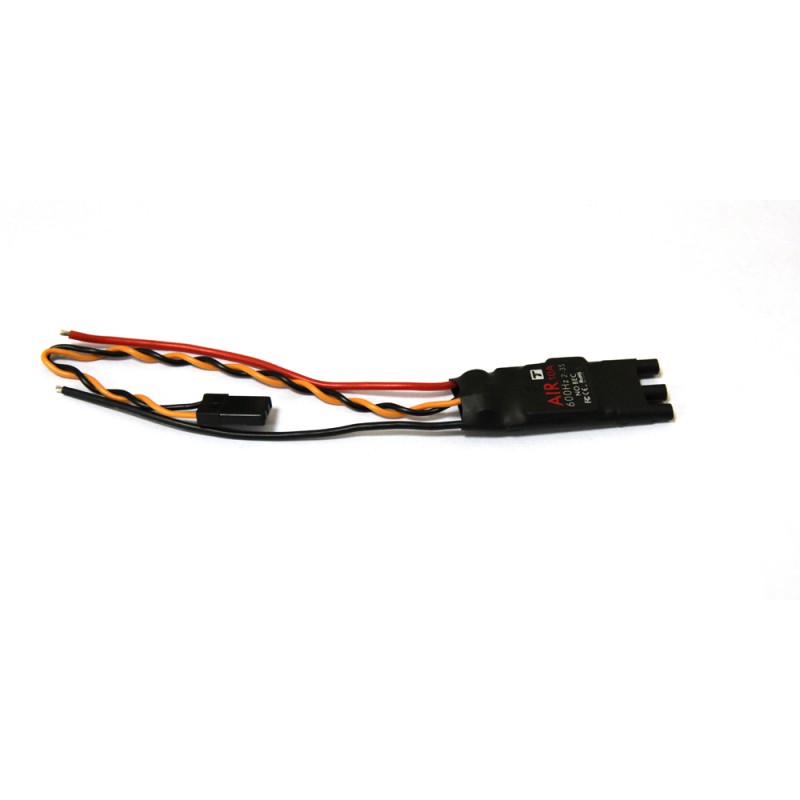

T-Motor brushless ESCs "AIR" series are specially designed for multicopters. This one offers a max continuous current of 10 A.

Meer details

En stock This product is in stock at our warehouse

17,26 €


Meer informatie

  • Special core program for multi-rotor controllers greatly improves throttle response.
  • Specilly optimized firmware for excellent compatibility with disc-type motors.
  • All settings except the timing are preset, making usage simple, highly intelligent and adaptative.
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
  • Compatible with various flight-control systems and supports a signal frequency of up to 621 Hz (Note : all throttle signals over 500 Hz are non-standard signals).
  • Perfect combination with T-Motor brand motor make even better performance.
Key features
  • Start-Up protection
  • Over-Load protection
  • Throttle Signal Loss Protection
Specifications
  • Con. Current / Courant maxi en continu : 10 A
  • Peak Current / Courant maxi en pointe (10 s) : 15 A
  • BEC : No / Non
  • LiPo : 2-3S
  • Programmable Item / Paramètre programmable : Timing (High, Intermediate / Haut, Moyen)
  • Weight / Poids : 6,5 g
  • Dimensions : 36.5 x 16.4 x 4.1 mm

Datasheet
  • Manufacturer : T-Motor
