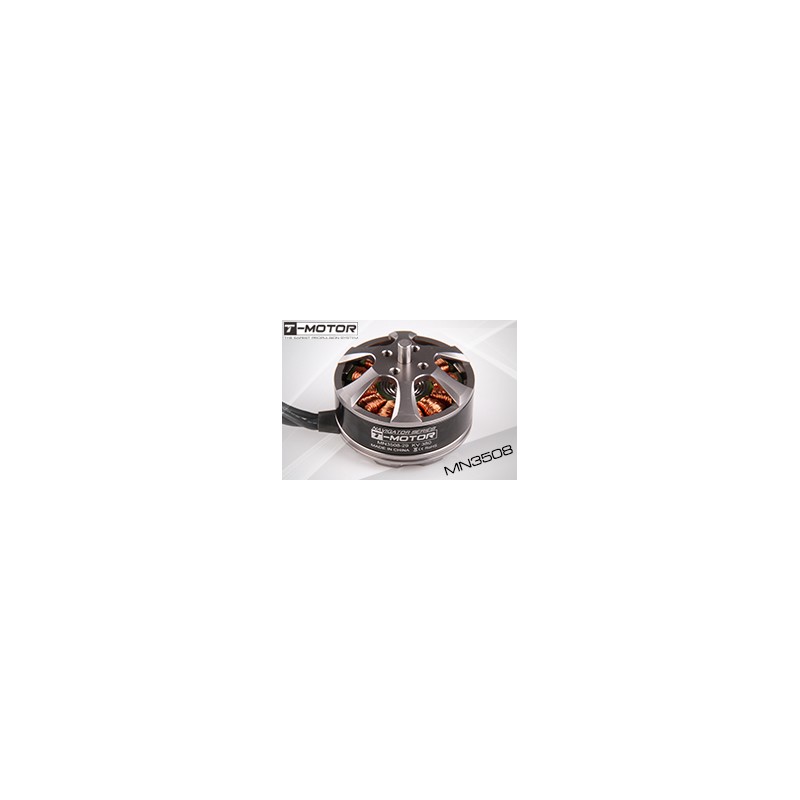

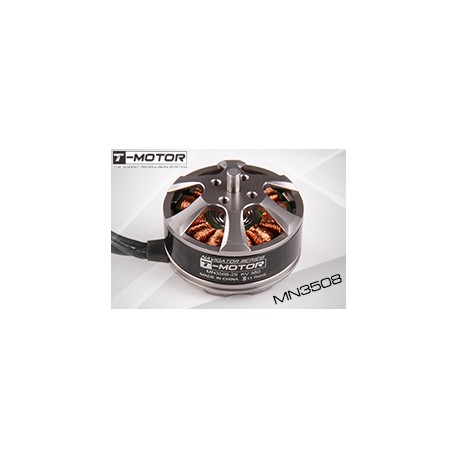

> DISC.. Brushless Motor MN3508-20 - 580KV
DISC.. Brushless Motor MN3508-20 - 580KV Bekijk groter

DISC.. Brushless Motor MN3508-20 - 580KV

TMOMN3508-20

T-Motor

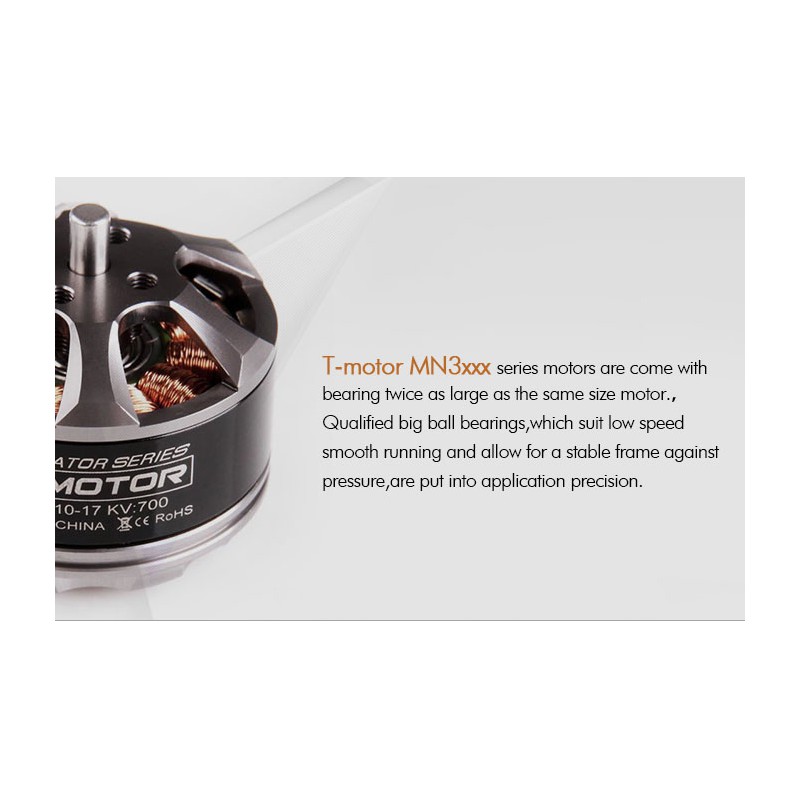

Brushless outrunner motor for multi-rotors. Work with 3-4S LiPo battery. Max thrust : 1520 g.

Meer details

En stock, envoi immediat This product is in low stock at our warehouse

64,00 €


Meer informatie

  • High efficency motor
  • Short shaft
  • Prop adapter included

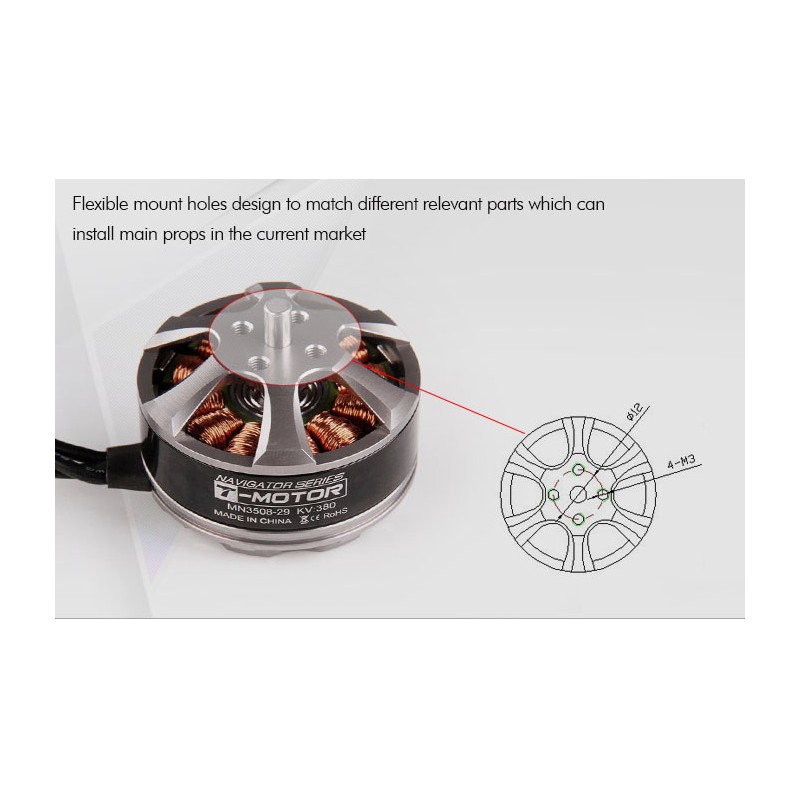

  • Work with standad props and with carbon prop attached with 2 screws.
  • Long wires
  • Low Kv

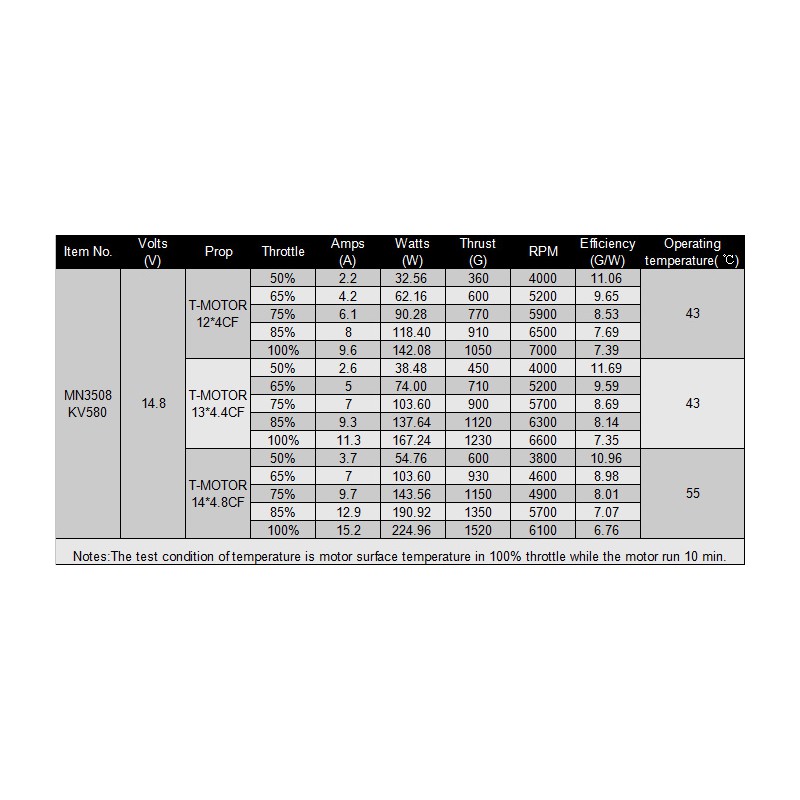

Specifications
  • KV : 580
  • Configuration : 12N14P
  • Stator Diameter : 35 mm
  • Stator Length : 8 mm
  • Shaft Diameter : 4 mm

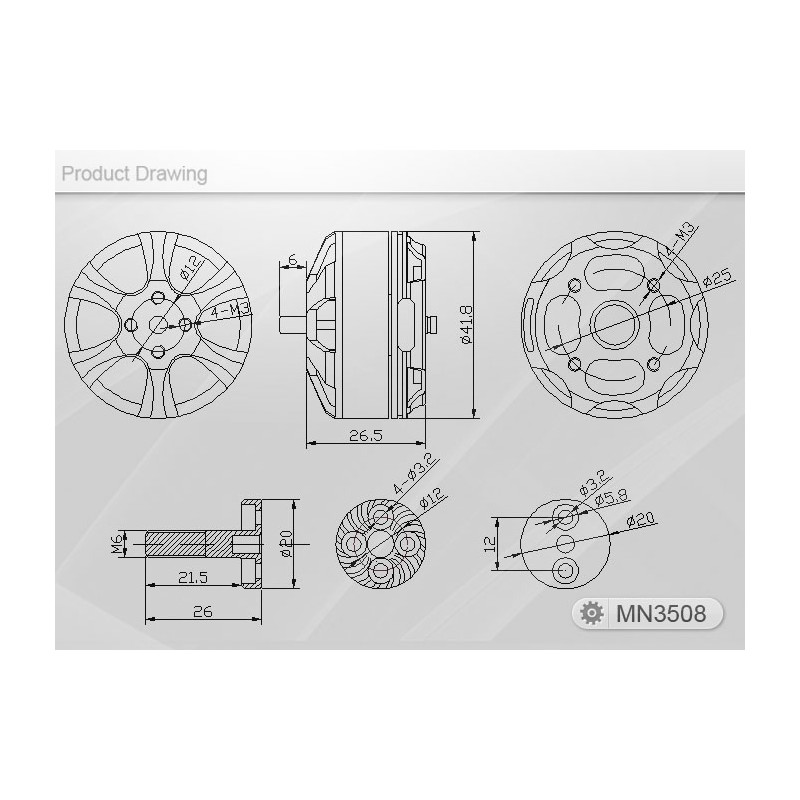

  • Motor Dimensions (Dia.*Len) : Φ41.8×26.5 mm
  • Weight (g) : 82 g
  • ldle current(10)@10v(A) : 0.4 A
  • No.of Cells(Lipo) : 3-4S
  • Max Continuous current(A)180S : 18 A
  • Max Continuous Power(W)180S : 400 W
  • Max. efficiency current : (3-9A)>82%
  • Internal resistance : 110 mΩ

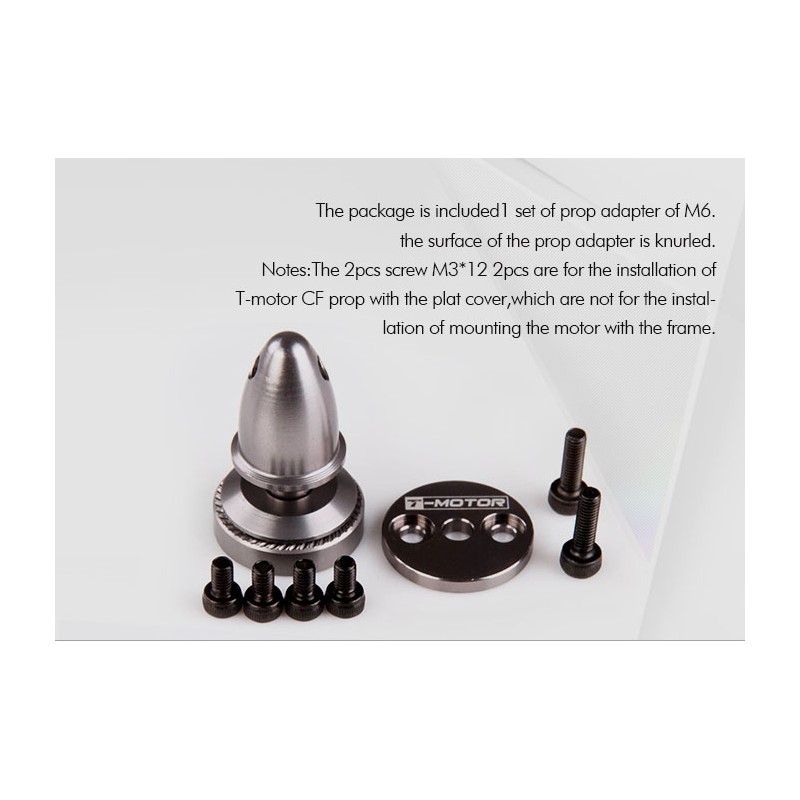

Composition Kit
  • Motor
  • M6 Prop adapter

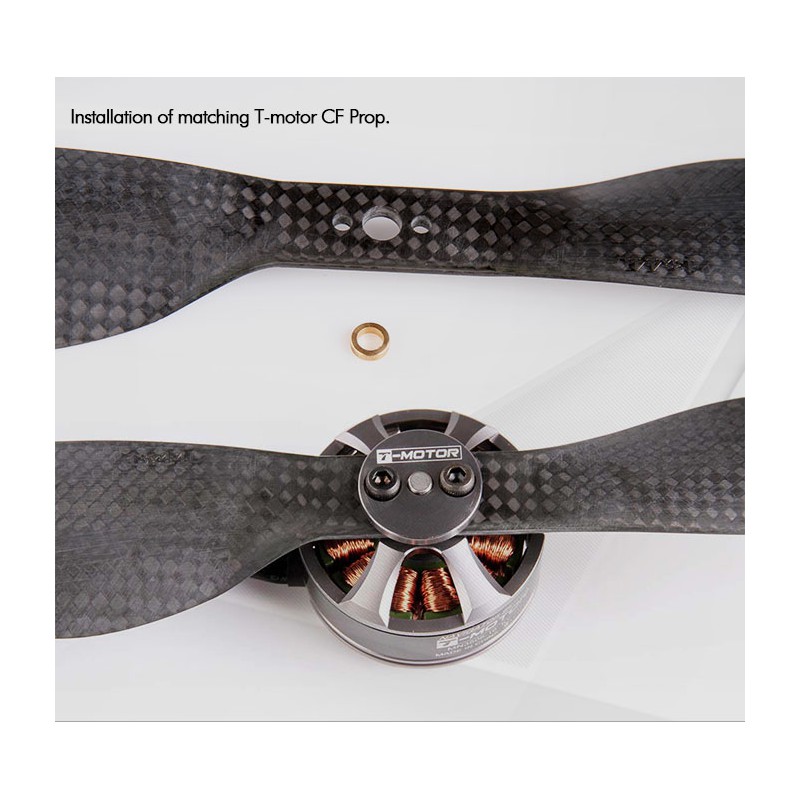

  • Cover and screw for T-Motor CF prop attachment
What you need to complete
  • Propeller
  • ESC
  • 3-4S Lipo battery
Datasheet
  • Manufacturer : T-Motor
