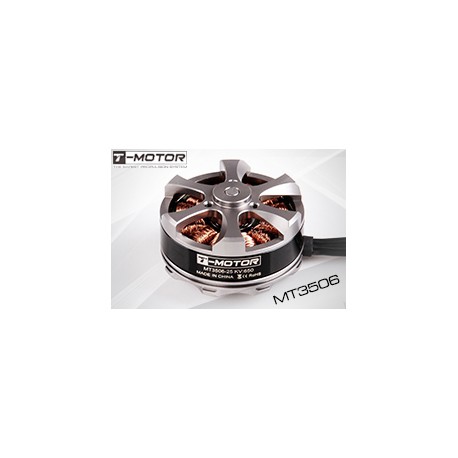

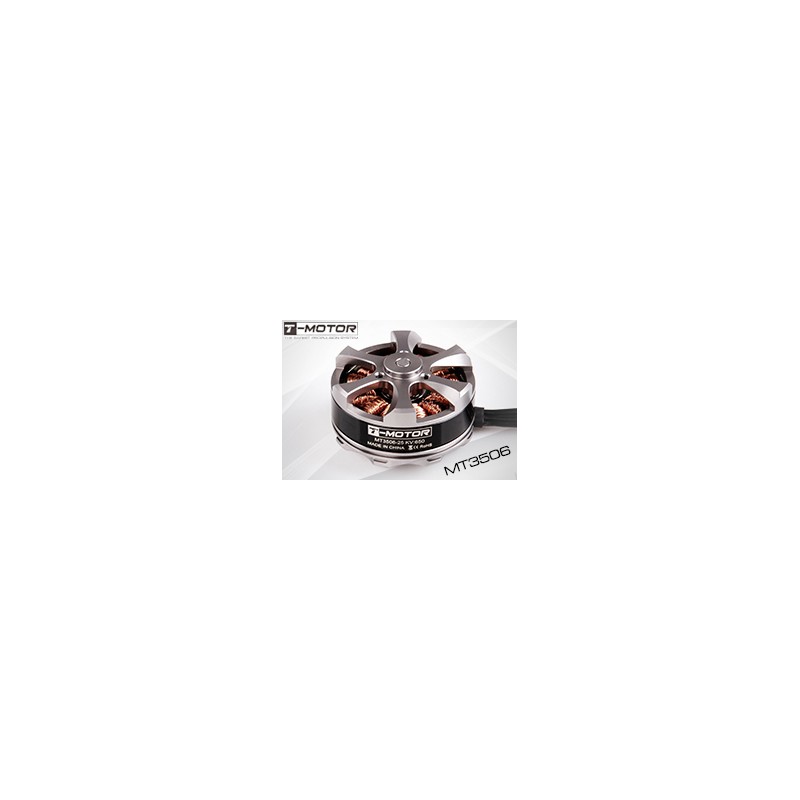

> DISC.. Brushless Motor MT3506-25 - 650KV
DISC.. Brushless Motor MT3506-25 - 650KV Bekijk groter

DISC.. Brushless Motor MT3506-25 - 650KV

TMOMT3506-25

T-Motor

Brushless outrunner motor for multi-rotors. For 3-4S LiPo battery. Max thrust : 1053 g.

Meer details

En stock This product is in stock at our warehouse

54,31 €


Meer informatie

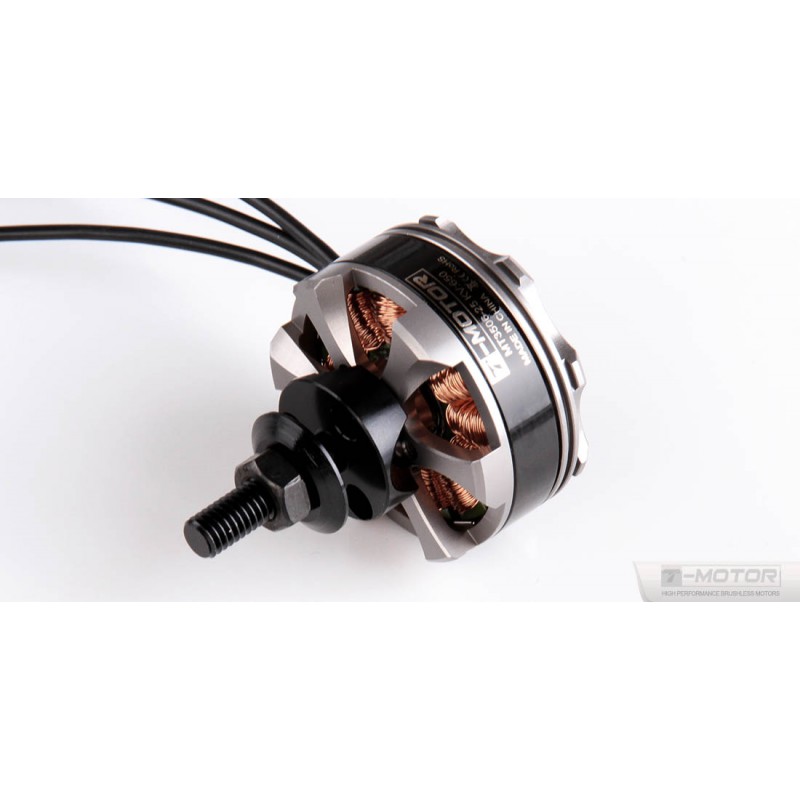

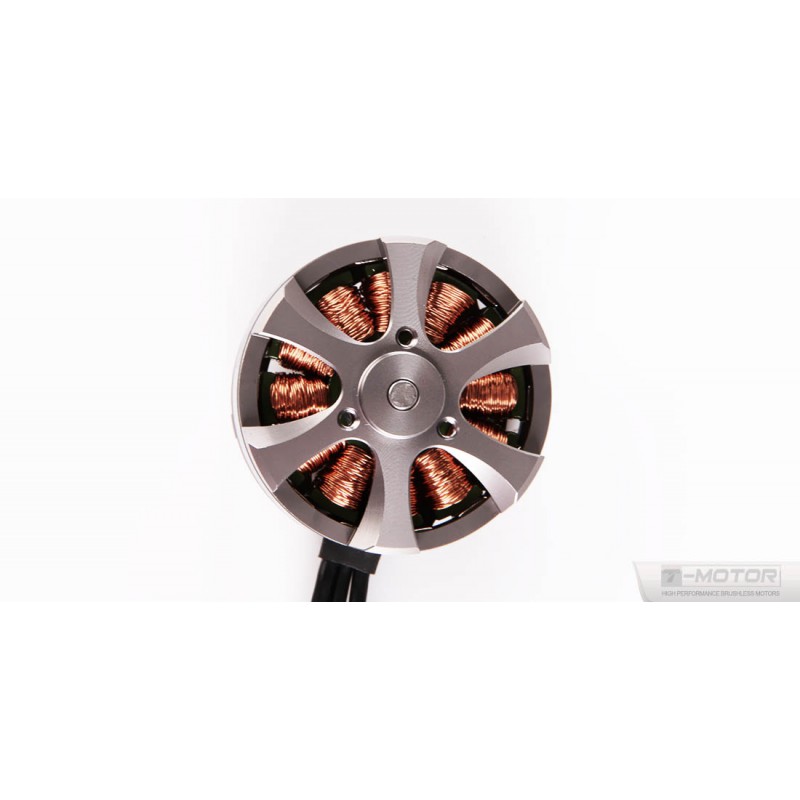

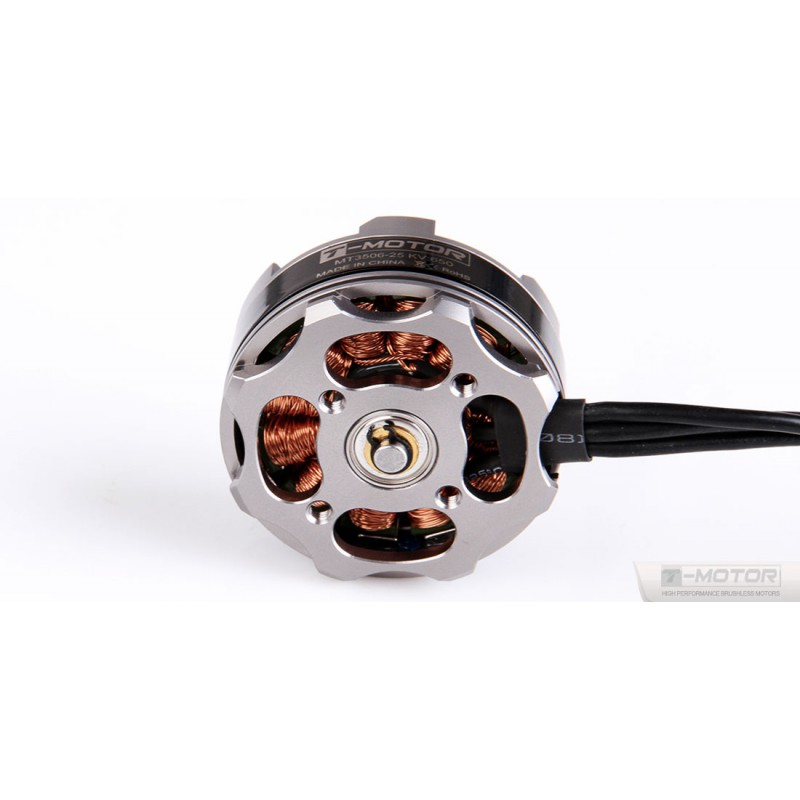

Brushless outrunner motor for multi-rotors.

Motor X mount and M5 prop adapter included.

Specifications
  • KV : 650
  • Configuration : 12N14P
  • Stator Diameter : 35 mm
  • Stator Length : 6 mm
  • Shaft diameter : 4 mm
  • Dimensions : diam 41.5 x 23.2 mm
  • Weight (g) : 70 g
  • ldle current(10)@10v(A) : 0.2 A
  • No.of Cells(Lipo) : 3-4S
  • Max Continuous current(A)180S : 14.5 A
  • Max Continuous Power(W)180S : 260 W
  • Max. efficiency current : (4-9A)>84%
  • Internal resistance : 155 mΩ

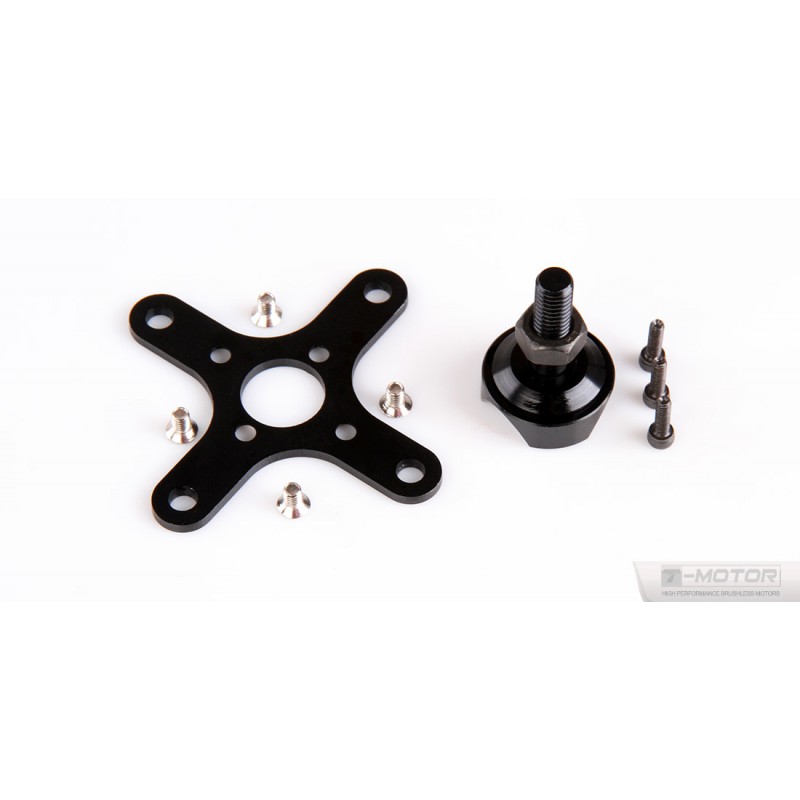

Composition Kit
  • Motor
  • Prop adapter M6
  • X mount
  • Screws
What you need to complete
  • ESC
  • Propeller
  • Battery
Datasheet
  • Manufacturer : T-Motor
